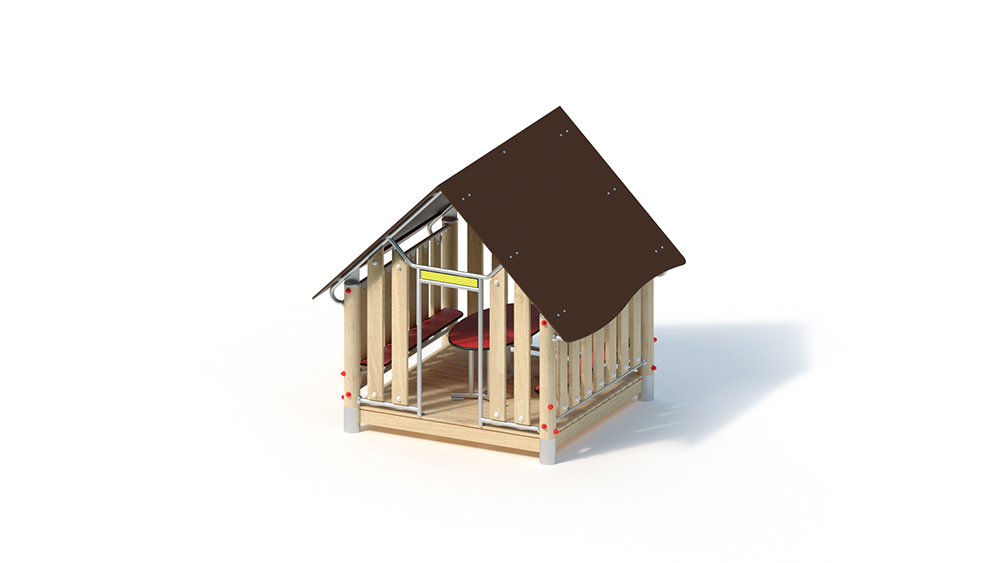

Alpine hut
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
children from 2 years,
public playgrounds etc.,
social activities
Techincal Specifications
Lifting Device
Y
Total Length
2.20 m
Total Width
2.00 m
Total Height
2.10 m
Minimum Space Length
5.20 m
Minimum Space Width
5.00 m
Minimum Space Height
2.10 m
Heaviest Single Piece
-
(Total) Weight
430.00 kg
Free Height of Fall
0.20 m
Platform Heights
0.20 m
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours plus lifting gear (without foundation creation)
Technical Data
Technical data
Floor area: 2.00 x 2.20 m
Minimum space: 5.00 x 5.20 m (24 m²)
Total height: 2.10 m
Platform height: 0.20 m
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachments
– gable wall (1.60) closed: wooden parapet made of robinia 125 x 30 mm, attachment between stainless steel tubes Ø 33.7 x 2 mm
– gable wall (1.60) with entrance and sign: wooden parapet made of robinia 125 x 30 mm, attachment between Stainless steel pipes Ø 33.7 x 2 mm; central entrance opening with shield made of HPL board
– gable roof boards for fastening to gable walls, roof pitch 45 °, made of highly weather-resistant HPL laminate panels (brown), 13 mm
– wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel pipes Ø 33.7 x 2 mm
– table made of highly weather-resistant HPL laminate board (red) 15 mm
– seat made of highly weather-resistant HPL laminate board (red), 20 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³
Free fall height
0.20 m
