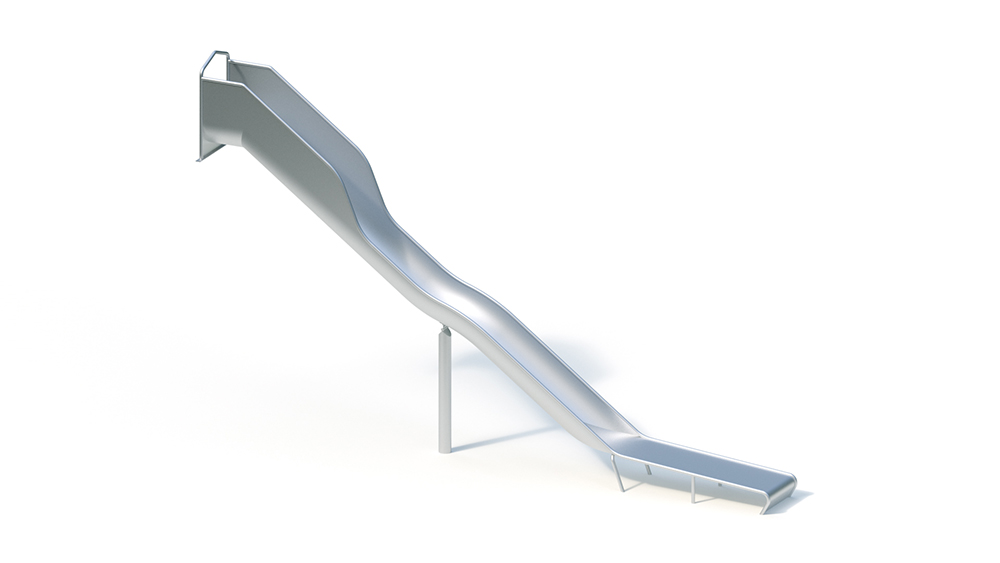

Add-on trough slide (2.60)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device


Total Length

6.00 m

Total Width

0.60 m

Total Height

3.60 m

Minimum Space Length

9.45 m

Minimum Space Width

4.30 m

Minimum Space Height

4.20 m

Heaviest Single Piece

190.00 kg

(Total) Weight

190.00 kg

Free Height of Fall

2.70 m

Platform Heights



Foundation 1

1 piece - 1.40 x 0.75 x 0.40 m volume: 0.42 m3

Foundation 2

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 0.60 x 5.25 m
Minimum space: 4.95 x 9.45 m Attachment
height: 2.60 m
Sitting height: 2.70 m Slide incline
: 36 ° Slide width
: 0.60 m
Slide plate thickness : 2.5 mm
Weight: 190 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Speed ​​regulation by shaft. Particularly quiet thanks to the shape of the recess. The slide must be dowelled onto a strip foundation or other suitable surface.
Please note that in the area of ​​the flange on the slide seat, a suitable surface (wooden platform or planks, concrete foundation, etc.) must be available on site.

Including K&K slide support post for the shaft area and mounting flange. Each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundations (on site)
1 pc. 1.40 x 0.75 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
Amount of concrete: 0.52 m³

Free fall height
max. 2.70 m
