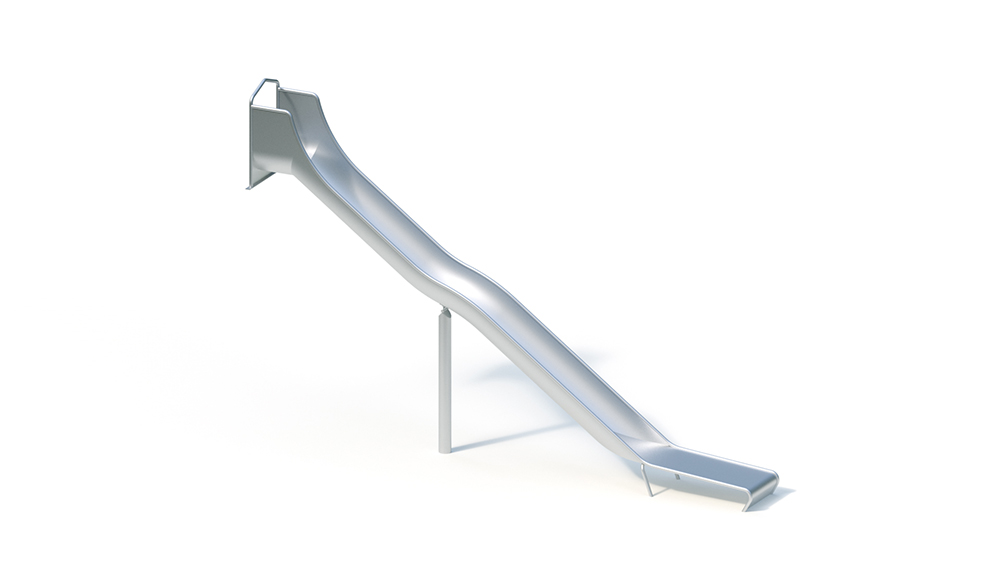

Add-on trough slide (2.40)
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 5 years,
public playgrounds
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
5.25 m
Total Width
0.60 m
Total Height
3.40 m
Minimum Space Length
8.75 m
Minimum Space Width
4.30 m
Minimum Space Height
4.00 m
Heaviest Single Piece
165.00 kg
(Total) Weight
165.00 kg
Free Height of Fall
2.50 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.90 x 0.75 x 0.40 m volume: 0.27 m3
Foundation 2
1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
Assembly time is delivered in one piece (without foundation creation)
Technical Data
Technical data
Base area: 0.60 x 5.25 m
Minimum space: 4.95 x 8.75 m Attachment
height: 2.40 m
Seat height: 2.50 m Slide incline
: 36 ° Slide width
: 0.60 m
Slide plate thickness : 2.5 mm
Weight: 165 kg in total
One-piece stainless steel construction, with additional support in the outlet area. Speed regulation by shaft. Particularly quiet thanks to the shape of the recess. The slide must be dowelled onto a strip foundation or other suitable surface.
Please note that in the area of the flange on the slide seat, a suitable surface (wooden platform or planks, concrete foundation, etc.) must be available on site.
Including K&K slide support post for the shaft area and mounting flange. Each made of stainless steel.
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Foundations (on site)
1 pc. 0.90 x 0.75 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
Amount of concrete: 0.37 m³
Free height of fall
max. 2.50 m
