0-41410-001

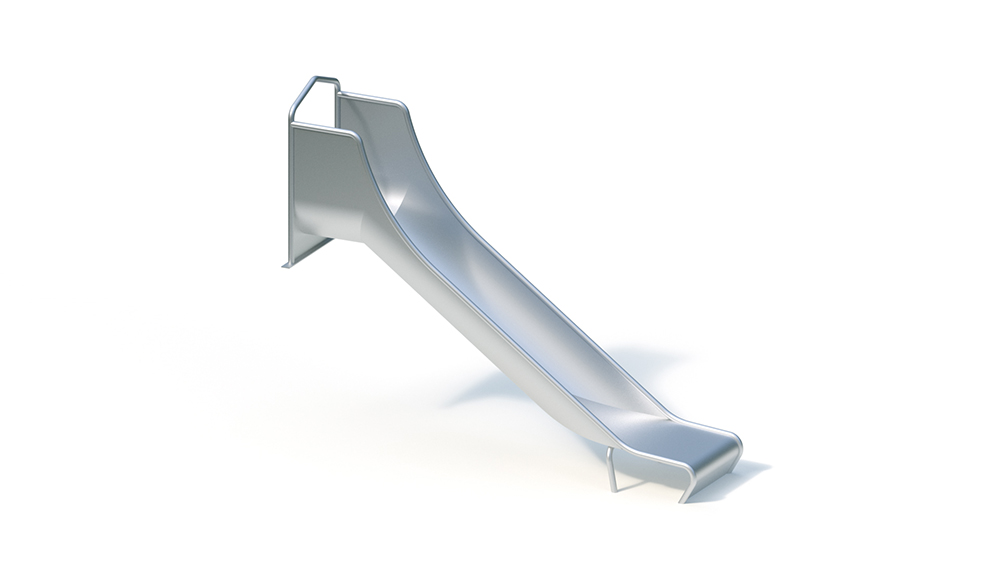

Add-on trough slide (1.00)

Key Attributes

Age Group

2+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 2 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

2.50 m

Total Width

0.60 m

Total Height

2.00 m

Minimum Space Length

6.05 m

Minimum Space Width

3.75 m

Minimum Space Height

2.60 m

Heaviest Single Piece

80.00 kg

(Total) Weight

80.00 kg

Free Height of Fall

1.10 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 0.60 x 2.50 m
Minimum space: 3.75 x 6.05 m
Flange width: 0.71
m
Attachment height: 1.00 m Sitting height: 1.10 m Slide inclination
: 36 ° Slide width
: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 80 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the trough. The slide must be dowelled onto a strip foundation or other suitable surface.
Please note that in the area of ​​the flange on the slide seat there must be a surface suitable for flanging (wooden platform or planks, concrete foundation, etc.) on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.12 m³

Free height of fall
max. 1.10 m
