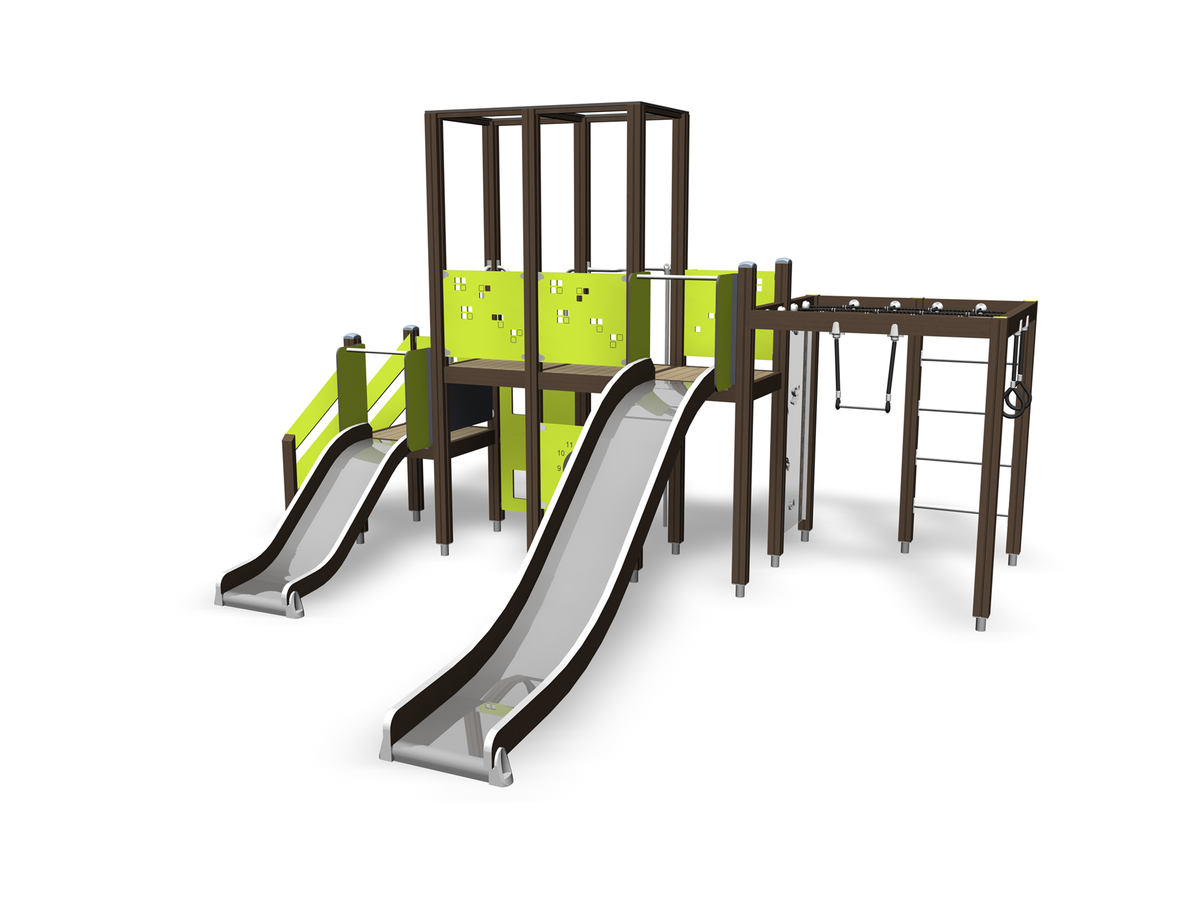

137124M

Activity Tower

The 137124m multiplay is an excellent play structure, combining a large number of different features that combine to make an exciting unit for multiple ages. Challenging climbing takes place on the 3d climbing net, whilst the steps and climbing rungs also provide alternative routes to the top decks. A slide and fireman’s pole offer an exhilarating route back to the ground.

Safety StandardsEN 1176-1, 3 TÜV
User Age1+
Amount Of Users18
Download Product Sheet

Technical Information

Length

5630MM

Width

4310MM

Height

3320MM

Heaviest Part

56KG

Largest Part

2685MM

Min Space Height

3320MM

Configurable

Yes

Falling Space Area

51M²

Falling Space Length

8930MM

Falling Space Width

8120MM

Impact Area

48.9M²

Max Free Fall Height

1970MM

Number Of Bridges

1

Number Of Climbing

4

Number Of Play Walls

1

Number Of Roofs

2

Slide Number

2

Stairs Number

1

Number Of Towers

3

Made In Finland
Stairs

Materials

Material Text

The frame is made of laminate and pine. The transparent climbing walls are made of UV-protected, weatherproof polycarbonate. The climbing grips are made of pressed sandstone rock mass and were specifically designed for wall bouldering. They never become slippery and offer an authentic rock feel. The nets are wrought from durable, coated steel cables.

Installation

Installation Time

17H (for 1)

Netto Weight

761.682KG
