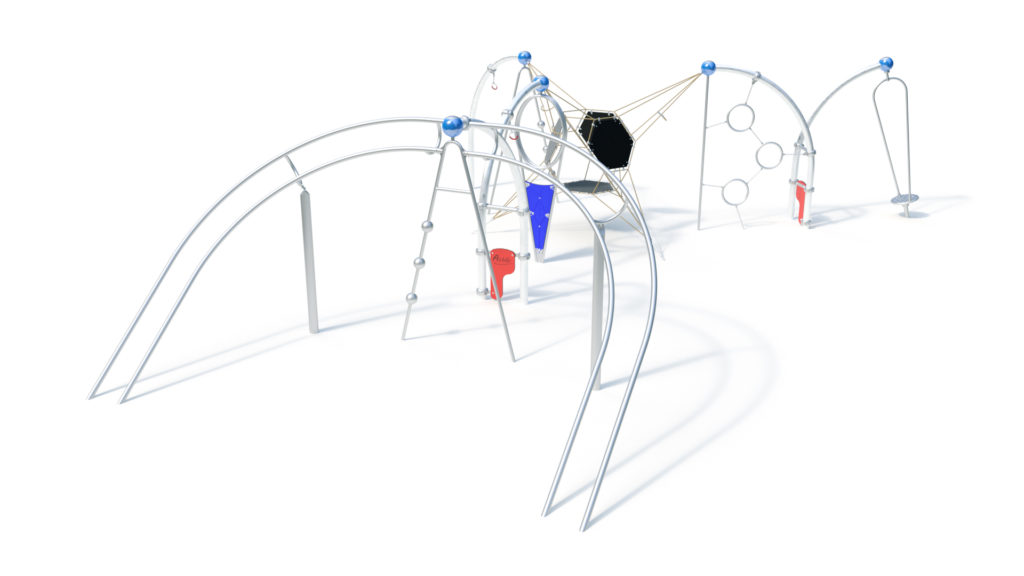

Actio 501

-+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

12.52 m

8.43 m

2.93 m

15.52 m

11.43 m

2.93 m

67.00 kg

814.00 kg

2.86 m

-

12 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

5 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

2 pieces - 1.00 x 0.80 x 0.50 m volume: 0.40 m3

-

-

-

3 pers.

6 h

Assembly time 3 fitters each 6 hours (without foundation creation)

Technical data
Equipment room: 12.52 x 8.43 x 2.93 m
Minimum space: 15.52 x 11.43 x 2.93 m
Impact area: 115 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
814 kg in total

Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 90 ° Space Cube
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Space Cube
– Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– Cross connections and T-connecting elements in the cable network consisting of aluminum
– Rubber mats made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
– Attachment of rubber mat through U-bracket (stainless steel)
– floor fastening with stainless steel chains (Ø 7 mm) and foundation tube (Ø 38 x 2 mm)

Airrail
– welded, partially screwed construction made of stainless steel tube Ø 60.3 and Ø 42.4 mm
– spherical
access
elements made of stainless steel – above: screwable connection to Actio construction element – below: restraint through site foundations

Big Hurricane
– welded, twisted construction made of stainless steel tube
– rotating bottom made of profiled stainless steel
sheet – roller bearings below and above: tamper-proof and protected against dirt
– above: screwable connection to the Actio construction element
– below: anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be set in concrete

Monkey Climber
– ring combination made of stainless steel tube Ø 38 mm
– suspension and connection with 7 mm stainless steel chains and swivel
– above: connection to Actio construction
element – below: restraint through site foundations

Resting Point
– climbing wall made of highly weather-resistant HPL laminate board, color blue, similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø38; with free climbing elements attached on one side
– above: screwable connection to Actio construction element
below: restraint through on-site foundations

Handle
– handle made of stainless steel with rubberized grip surface and chain Ø 6 mm
– above: connection to Actio construction element with aluminum clamp (optionally powder-coated in RAL color of your choice)

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Number of components for optional powder coating
5 pieces. Elbow 90 °
10 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
2 pcs. 1.30 x 0.50 x 0.50 m
1 pc. 1.00 x 0.80 x 0.50 m
12 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: 4.67 m³
