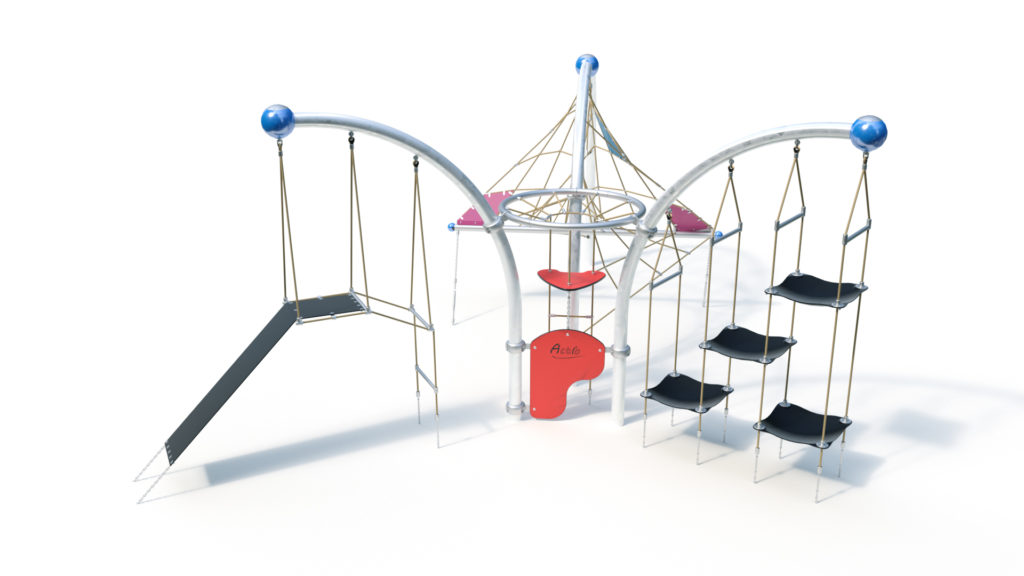

Actio 485

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

6.45 m

5.64 m

2.93 m

9.46 m

9.28 m

2.93 m

67.00 kg

443.00 kg

2.86 m

-

1 piece - 1.40 x 0.70 x 0.50 m volume: 0.49 m3

2 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

1 piece - 2.40 x 0.85 x 0.50 m volume: 1.02 m3

2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

1 piece - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

-

3 pers.

4 h

Assembly time 3 fitters each 4 hours (without foundation creation)

Technical data
Equipment room: 5.64 x 6.45 x 2.93 m
Minimum space: 9.28 x 9.46 x 2.93 m
Impact area: 63 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
443 kg in total

Arc 90 ° Vortex
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Flying Carpet
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Moving Hill
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Vortex
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– cross connections and T-connection elements in the cable network consisting of aluminum
– rubber mats made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
– fastening of rubber mat by U -Bar (stainless steel)
– cross tube (76.1 mm) welded – floor
fastening by stainless steel chains ( Ø 7 mm) and foundation tube (Ø 38 x 2 mm)

Flying Carpet
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel
core – elastic mat element made of 8 mm thick, PAH-free and 4-fold textile
-reinforced rubber – cross clamping tube, welded stainless steel construction consisting of tube (Ø 33, 7 x 2 mm) welded to a clamping tube (Ø 34 x 8.5 mm)
– floor mounting, stainless steel chains (Ø 7 mm) welded to a circular blank (Ø 90 x 3 mm) at the top, screwed to the foundation tube (Ø 38 x 2 mm) at the bottom )
– Connection to Arc 90 ° by shackles, Ø 10 mm

Moving Hill
– Polypropylen-Seil (Ø 16 mm), 6-litzig, mit verzinkter Stahleinlage
– elastisches Mattenelement aus 8 mm starkem, PAK-freiem und 4-fach textilbewehrtem Gummi
– Befestigungslasche für Gummimatte, Edelstahlkonstruktion bestehend aus Klemmrohr (Ø 34 x 8,5 mm) verschweißt mit Blech (30 x 68 mm)
– Quer-Klemmrohr, Edelstahlkonstruktion bestehend aus Rohr (Ø 33,7 x 2 mm) verschweißt mit Klemmrohr (Ø 34 x 8,5 mm)
– Bodenbefestigung, Edelstahlketten (Ø 7 mm) verschweißt mit Flacheisen (390 x 35 x 3 mm) am oberen Ende, unten verschraubt mit Fundamentrohr (40 x 40 x 2 mm)
– Anschluss an Arc 90° durch Schäkel, Ø 10 mm

Climbing Basket
– pipe ring made of stainless steel (Ø 1200 x Ø 60.3 x 3 mm)
– connection to the Actio construction
element with aluminum clamps (optionally powder-coated in RAL color of your choice) – polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– base plate made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm.
– Cross connections and T-connection elements in the cable network made of aluminum

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Number of components for optional powder coating
4 pieces. Elbow 90 °
6 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.40 x 0.70 x 0.50 m
2 pieces. 1.30 x 0.50 x 0.50 m
1 pc. 2.40 x 0.85 x 0.50 m
2 pieces. 0.60 x 0.60 x 0.50 m
1 pc. 0.70 x 0.50 x 0.50 m
amount of concrete: 2.71 m³
