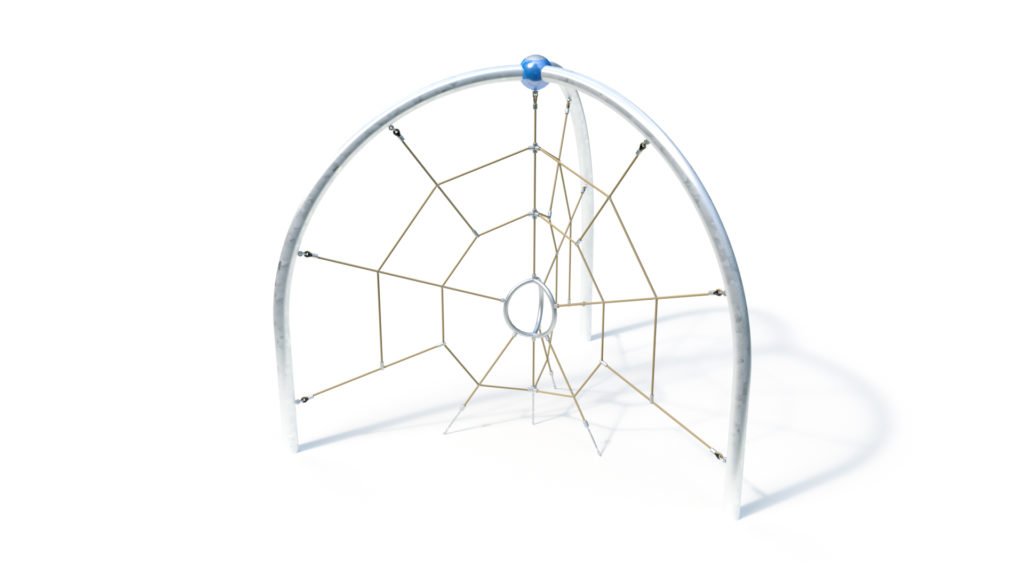

Actio 366

-+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

3.42 m

2.98 m

2.93 m

6.42 m

5.98 m

2.93 m

67.00 kg

200.00 kg

2.86 m

-

3 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

1 piece - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

-

3 pers.

3 h

Assembly time 3 fitters each 3 hours (without foundation creation)

Technical data
Equipment compartment: 3.42 x 2.98 x 2.93 m
Minimum space: 6.42 x 5.98 x 2.93 m
Impact area: 28 m²
Total height: 2.92 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
200 kg in total

Arc 90 ° Spider Net
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Spider Net
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– cross connections and T-connecting elements in the cable network made of aluminum
– tubular ring made of stainless steel (Ø 450 x Ø 38 x 2 mm), welded with rope connections (Ø 48 , 3 mm)
– floor attachment, stainless steel chains (Ø 7 mm), welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles, Ø 10 mm

Foundations (on site)
3 pcs. 1.30 x 0.50 x 0.50 m
1 pc. 0.60 x 0.60 x 0.60 m
Amount of concrete: 1.17 m³
