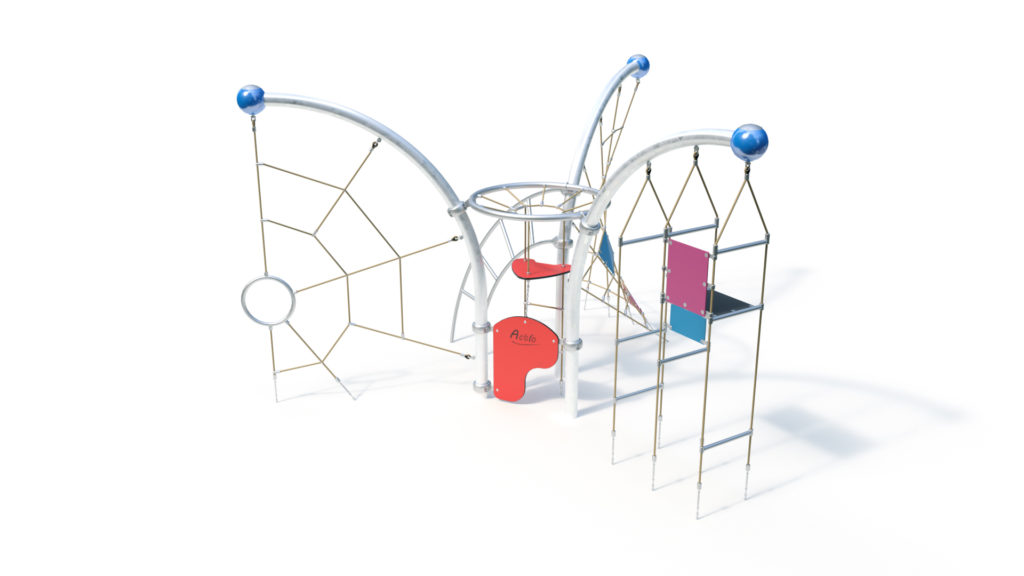

Actio 362

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.57 m

4.01 m

2.93 m

8.84 m

8.30 m

2.93 m

67.00 kg

345.00 kg

2.86 m

-

3 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

1 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

1 piece - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

1 piece - 2.50 x 0.30 x 0.50 m volume: 0.38 m3

1 piece - 1.20 x 0.70 x 0.50 m volume: 0.42 m3

-

3 pers.

5 h

Assembly time 3 fitters each 5 hours (without foundation creation)

Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total

Arc 90 ° Twister
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Climbing Cube
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Spider Net
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Twister
– Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– Cross connections and T-connecting elements in the cable network are made of aluminum
– Rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
– Attachment of rubber mat by U- Bracket (stainless steel)
– floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles, Ø 10 mm

Climbing Cube
– Polypropylen-Seil (Ø 16 mm), 6-litzig, mit verzinkter Stahleinlage
– Gummimatten (8mm), PAK-freiem und 4-fach textilbewehrtem Gummi
– Befestigungslasche für Gummimatte, Klemmrohr (Ø 34 x 8,5 mm) verschweißt mit Blech (30 x 68 mm)
– Quer Klemmrohr, verschweißte Edelstahlkonstruktion bestehend aus Rohr (Ø 33,7 x 2 mm) verschweißt mit Klemmrohr (Ø 34 x 8,5 mm)
– Bodenbefestigung, Edelstahlketten (Ø 7 mm) verschweißt mit Kettenadapter (Ø 34 x 8,5 mm) am oberen Ende, unten verschweißt mit Spannschloß (M10)
– Anschluss an Arc 90° durch Schäkel, Ø 10 mm

Spider Net
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– cross connections and T-connection elements in the cable network are made of aluminum
– tubular ring made of stainless steel (Ø 450 x Ø 38 x 2) welded with 4x rope connection (Ø 48 , 3)
– Floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube ( Ø 38 x 2 mm)
– Connection to Arc 90 ° through shackles, Ø 10 mm

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Climbing Basket
– pipe ring made of stainless steel (Ø 1200 x Ø 60.3 x 3) welded with 9x rope connection (Ø 48.3) and 3x ring for the Actio post.
– Connection to Actio construction
element with aluminum clamps (optionally powder-coated in RAL color of your choice) – Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– Base plate made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm.
– Cross connections and T-connection elements in the cable network are made of aluminum

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Foundations (on site)

Amount of concrete: m³
