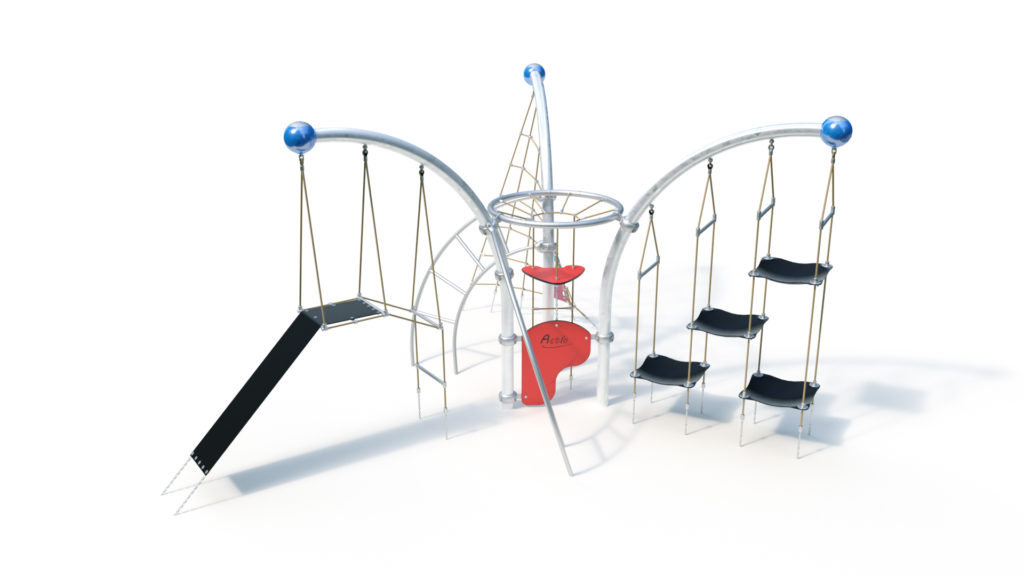

Actio 360

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

5.63 m

4.60 m

2.93 m

9.27 m

8.29 m

2.93 m

67.00 kg

390.00 kg

2.86 m

-

1 piece - 2.40 x 0.85 x 0.50 m volume: 1.02 m3

1 piece - 2.50 x 0.30 x 0.50 m volume: 0.38 m3

1 piece - 1.40 x 0.70 x 0.50 m volume: 0.49 m3

1 piece - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

2 pieces - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

1 piece - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

3 pers.

5 h

Assembly time 3 fitters each 5 hours (without foundation creation)

Technical data
Equipment room: 5.63 mx 4.60 x 2.93 m
Minimum space: 9.27 x 8.29 x 2.93 m
Impact area: 56 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
390 kg in total

Arc 90 ° Twister
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Moving Hill
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Flying Carpet
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Twister
– Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– Cross connections and T-connecting elements in the rope network made of aluminum
– Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced rubber
– Attachment of rubber mat by U- Bracket (stainless steel)
– floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles, Ø 10 mm

Moving Hill
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
– fastening strap for rubber mat, stainless steel construction consisting of clamping tube (Ø 34 x 8 , 5 mm) welded to sheet metal (30 x 68 mm)
– cross clamp tube, stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded with clamp tube (Ø 34 x 8.5 mm)
– floor fastening, stainless steel chains (Ø 7 mm) welded with flat iron (390 x 35 x 3 mm) at the upper end, screwed at the bottom with foundation tube (40 x 40 x 2 mm)
– connection to Arc 90 ° by shackles, Ø 10 mm

Flying Carpet
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel
core – elastic mat element made of 8 mm thick, PAH-free and 4-fold textile
-reinforced rubber – cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded with a clamping tube (Ø 34 x 8.5 mm)
– floor mounting, stainless steel chains (Ø 7 mm) welded to a circular blank (Ø 90 x 3 mm) at the top, screwed at the bottom to the foundation tube (Ø 38 x 2 mm)
– Connection to Arc 90 ° with shackles, Ø 10 mm

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Climbing Basket
– pipe ring made of stainless steel (Ø 1200 x Ø 60.3 x 3) welded with 9x rope connection (Ø 48.3) and 3x retaining ring for Actio posts
– connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of
your choice) – Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– Base plate made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm.
– Cross connections and T-connection elements in the cable network made of aluminum

Foundations (on site)
1 pc. 2.40 x 0.85 x 0.50 m
1 pc. 2.50 x 0.30 x 0.50 m
1 pc. 1.40 x 0.70 x 0.50 m
1 pc. 1.30 x 0.50 x 0.50 m
2 pieces. 0.90 x 0.40 x 0.50 m
1 pc. 0.70 x 0.50 x 0.50 m

Amount of concrete: 2.76 m³
