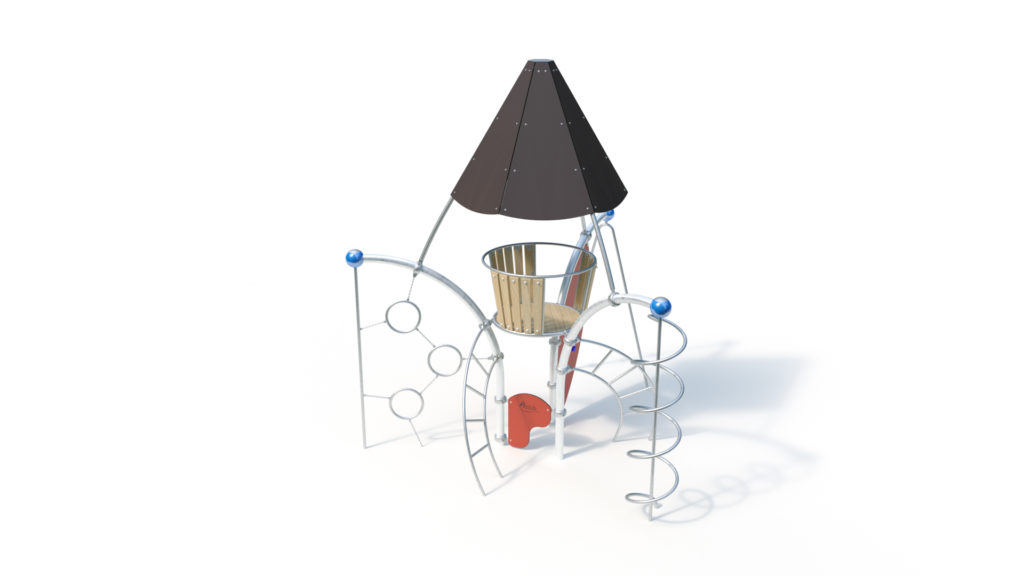

Actio 352

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Y

4.95 m

4.48 m

5.35 m

8.84 m

8.30 m

5.35 m

115.00 kg

735.00 kg

2.86 m

-

3 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

4 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

2 pieces - 0.80 x 0.40 x 0.50 m volume: 0.16 m3

-

-

-

3 pers.

5 h

Assembly time 3 fitters each 5 hours (without foundation creation)

Technical data
Equipment room: 4.95 x 4.48 x 5.35 m
Minimum space: 8.84 x 8.30 x 5.35 m
Impact area: 55 m²
Total height: 5.35 m
Free fall height: 2.86 m
Weight: 115kg heaviest single part
735kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Crows Nest
– wooden parapet consisting of boards, front side 1: 125 x 30 x 812 mm. Front side 2: 92 x 30 mm. Difference in the front sides, as it tapers.
Platform floor made of boards, 30 mm thick and with a square timber beam 125 x 30 x980 in the middle. The platform floor is screwed onto a flange ring.
The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive fastening by screwing at the brackets provided.
– Stainless steel welded construction consisting of a ring below (Ø60 x 3 x Ø1200 welded with flange ring, 15x connection lugs, panel parapet and 3x mounting
lugs ) and ring above (Ø38 x 2 x Ø1500 welded with 15x connection lugs, wooden parapet board) 6x tubes (Ø38 x 2) serve as connecting elements.

Actio Roof
– roof panels made of highly weather-resistant HPL laminate, color earth similar to RAL 8017, 13 mm.
– Roof hood made of 3mm stainless steel sheet
– Fastening with 3 stainless steel tubes (Ø60.3 x 2.5) which are provided with angles.

Monkey Climber
– ring combination made of stainless steel tube Ø 38 mm
– suspension and connection with 7 mm stainless steel chains and swivel
– above: connection to Actio construction
element – below: restraint through site foundations

Spring Slide
– welded construction made of stainless steel tube Ø 42.4 mm
– above: screwable connection to Actio construction
element – below: restraint through on-site foundations

Climbing Wall
– climbing wall made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm, with free climbing elements on both sides
– above: connection to the Actio construction element using an aluminum clamp (optionally powder-coated in RAL color of your choice) and a welded construction Stainless steel
pipe Ø 38 – below: restraint by on-site foundations

Climbing Pipe
– welded construction made of stainless steel pipe Ø 38 mm with three stainless steel balls Ø150 mm
– above: screwable connection to Actio construction
element – below: restraint through site foundations

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Foundations (on site)
3 pcs. 1.30 x 0.50 x 0.50 m
4 pcs. 0.60 x 0.60 x 0.50 m
2 pieces. 0.80 x 0.40 x 0.50 m
amount of concrete: 2.0 m³
