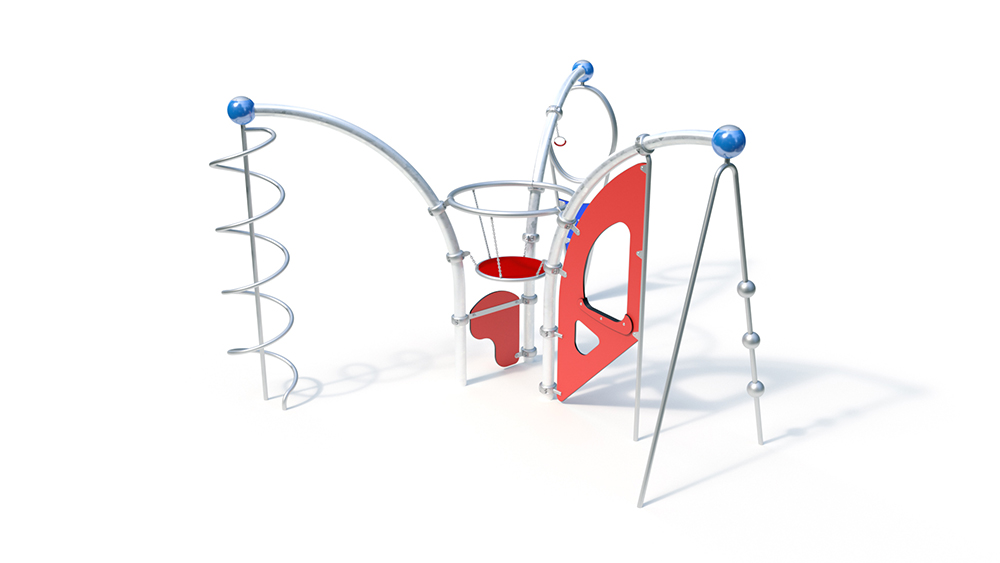

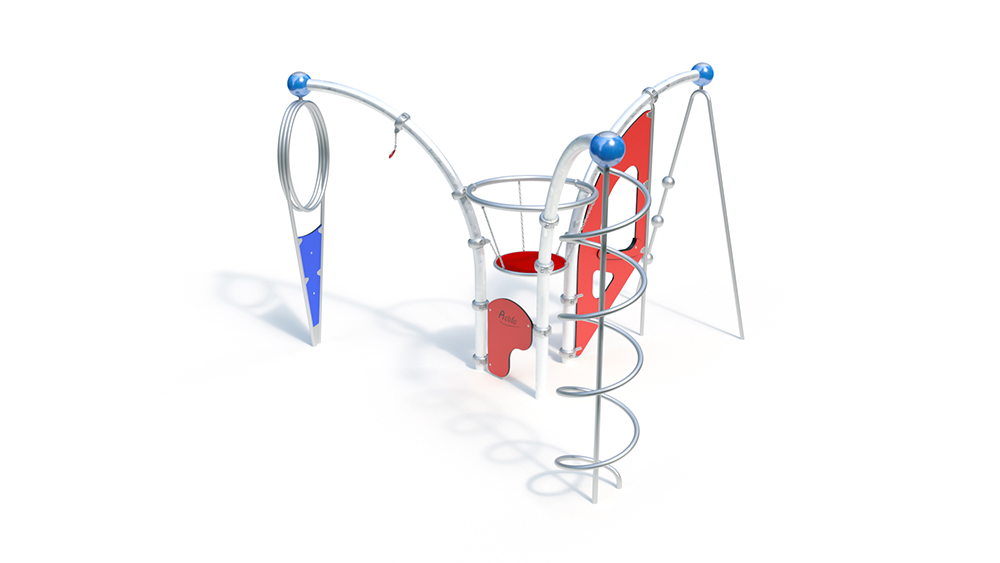

Actio 319

6+

Public playgrounds

Slide

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.10 m

4.79 m

2.93 m

8.30 m

8.84 m

2.93 m

67.00 kg

552.00 kg

2.86 m

-

3 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

4 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

-

3 pers.

5 h

Assembly time 3 fitters each 5 hours (without foundation creation)

Technical data
Equipment room: 4.10 x 4.79 x 2.93 m
Minimum space: 8.30 x 8.84 x 2.93 m
Impact area: 54 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
552 kg in total

Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Chill Wall
– climbing wall made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm.
– above: connection to the Actio construction
element by means of an aluminum clamp (optionally powder-coated in RAL color of your choice) and a welded construction made of stainless steel pipe Ø 38 – below: restraint through site foundations

Climbing Pipe
– welded construction made of stainless steel pipe Ø 38 mm with three stainless steel balls Ø150 mm
– above: screwable connection to Actio construction
element – below: restraint through site foundations

Resting Point
– climbing wall made of highly weather-resistant HPL laminate board, color blue, similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø38; with free climbing elements attached on one side
– above: screwable connection to Actio construction element
below: restraint through on-site foundations

Spring Slide
– welded construction made of stainless steel tube Ø 42.4 mm
– above: screwable connection to Actio construction
element – below: restraint through on-site foundations

Wobble Disc
– welded construction made of stainless steel tube Ø 60.3 mm with 6 mm chains
– non-slip base made of EPDM
– connection to Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice)

Hand grip
– hand grip with rubberized grip surface and 6 mm chain
– above: connection to Actio construction element with aluminum clamp (optionally powder-coated in RAL color of your choice)

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Number of components for optional powder coating
2 pieces. Elbow 90 °
1 pc. Elbow 75 °
13 pcs. Aluminum clamp Ø 114 mm

Foundation (on site)
3 pcs. 1.30 x 0.50 x 0.50 m
4 pcs. 0.60 x 0.60 x 0.50 m
amount of concrete: 1.70 m³
