0-27301-000

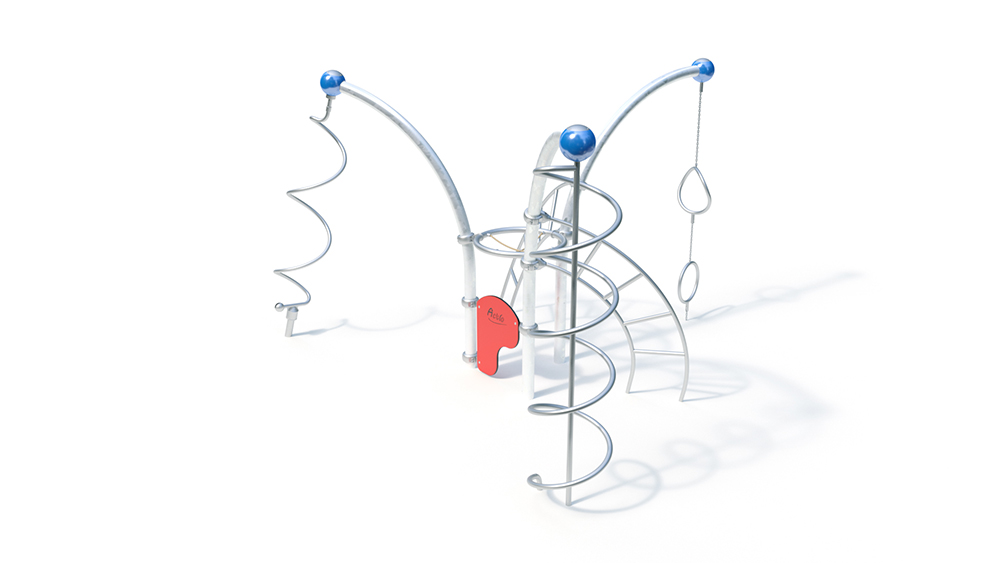

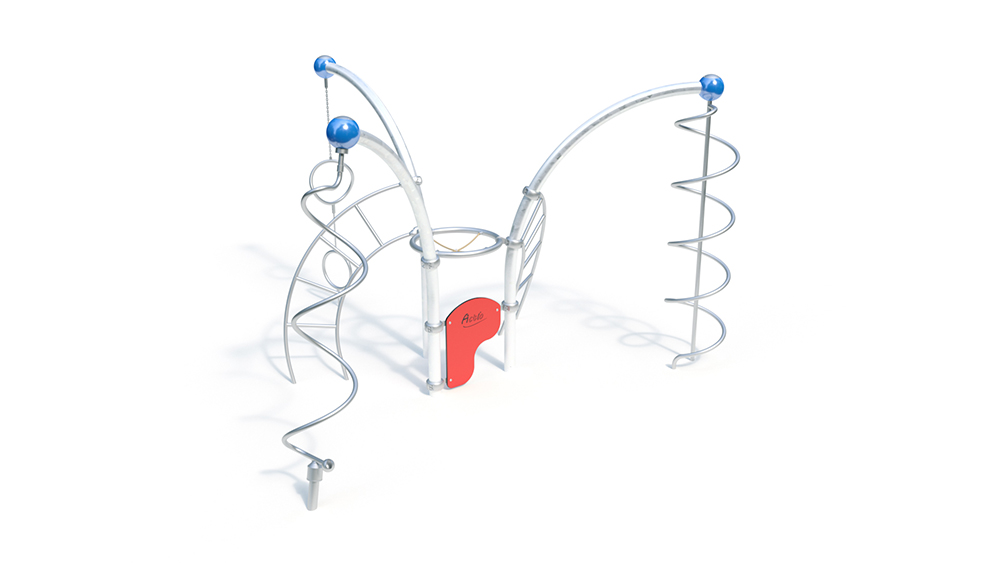

Actio 301

Key Attributes

Age Group

6+

Area of Use

Public playgrounds

Activity

Climb

Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

4.46 m

Total Width

4.42 m

Total Height

2.93 m

Minimum Space Length

7.89 m

Minimum Space Width

7.86 m

Minimum Space Height

2.93 m

Heaviest Single Piece

67.00 kg

(Total) Weight

398.00 kg

Free Height of Fall

2.86 m

Platform Heights

-

Foundations

Foundation 1

3 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

Foundation 2

2 pieces - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

Foundation 3

3 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

3 pers.

Assembly Time

5 h

Assembly Details

Assembly time 3 fitters each 5 hours (without foundation creation)

Technical Data

Technical data
Equipment compartment: 4.46 x 4.42 x 2.93 m
Minimum space: 7.86 x 7.89 x 2.93 m
Impact area: 44 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
398 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Big Tornado
– welded, spiral-shaped construction made of stainless steel tube with knurled base
– roller bearings below and above: tamper-proof and protected against dirt
– anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be concreted
– above: screwable connection to the Actio construction element
– below: anchoring is carried out via a foundation anchor to be concreted in hot-dip galvanized steel

Big Hurricane
– welded, twisted construction made of stainless steel tube
– rotating bottom made of profiled stainless steel
sheet – roller bearings below and above: tamper-proof and protected against dirt
– above: screwable connection to the Actio construction element
– below: anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be set in concrete

Monkey Rings
– ring combination made of stainless steel tube Ø 38 mm – 1x flat / 1x spatially twisted
– suspension and connection with 7 mm stainless steel chains and swivel
– rotatable independently of each other
– above: screwable connection to Actio construction element
– below: deflection by chain with foundation and screwed Limited ground connection

Meeting point
– welded construction made of stainless steel tube Ø 60.3 mm with Hercules rope cross made of Ø16 mm Hercules rope with 6-strand steel core
– connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice)

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red / similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
2 pieces. Elbow 90 °
1 pc. Elbow 75 °
8 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
3 pcs. 1.30 x 0.50 x 0.50 m
2 pieces. 0.90 x 0.40 x 0.50 m
3 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: approx. 1.90 m³
