Actio 293

-+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

3.93 m

0.60 m

2.93 m

6.93 m

4.82 m

2.93 m

67.00 kg

200.00 kg

2.86 m

-

1 piece - 4.50 x 0.85 x 0.50 m volume: 1.90 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment compartment: 3.93 x 0.60 x 2.93 m
Minimum space: 6.93 x 4.82 x 2.93 m
Impact area: 25 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
200 kg in total

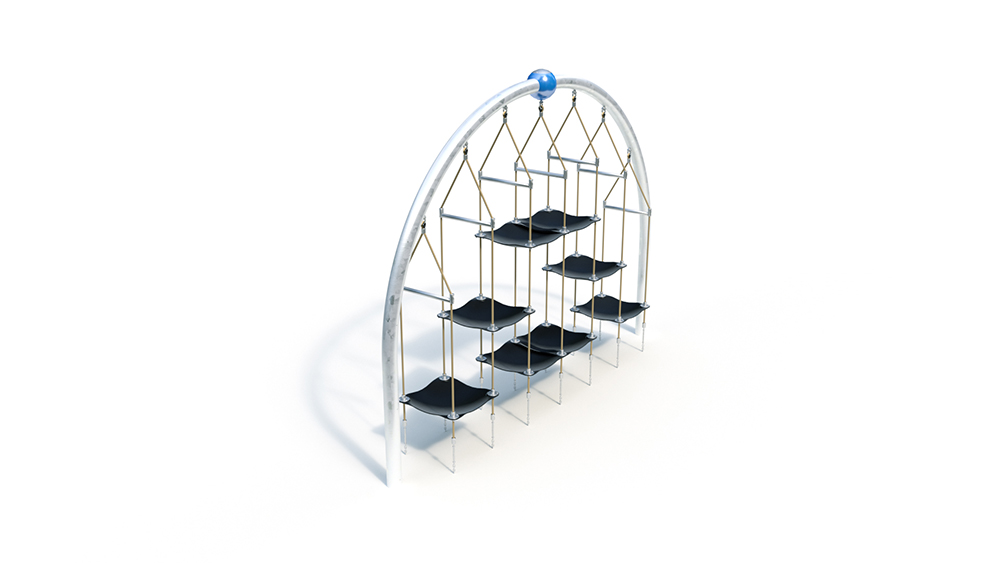

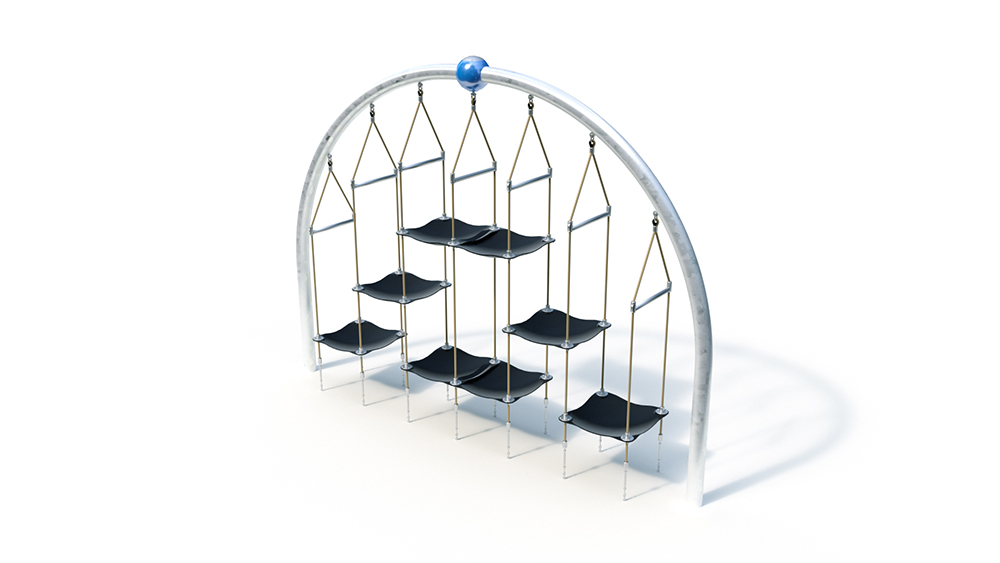

Arc 90 ° Flying Carpet
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Flying Carpet
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel
core – elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-
reinforced rubber – cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to a clamping tube (Ø 34 x 8.5 mm)
– floor fastening, stainless steel chains (Ø 7 mm) welded to a circular blank (Ø 90 x 3 mm) at the top, screwed to the foundation tube (Ø 38 x 2 mm) at the bottom
– Connection to Arc 90 ° with shackles, Ø 10 mm

Foundations (on site)
1 pc. 4.50 x 4.85 x 0.50 m
amount of concrete: 1.90 m³
