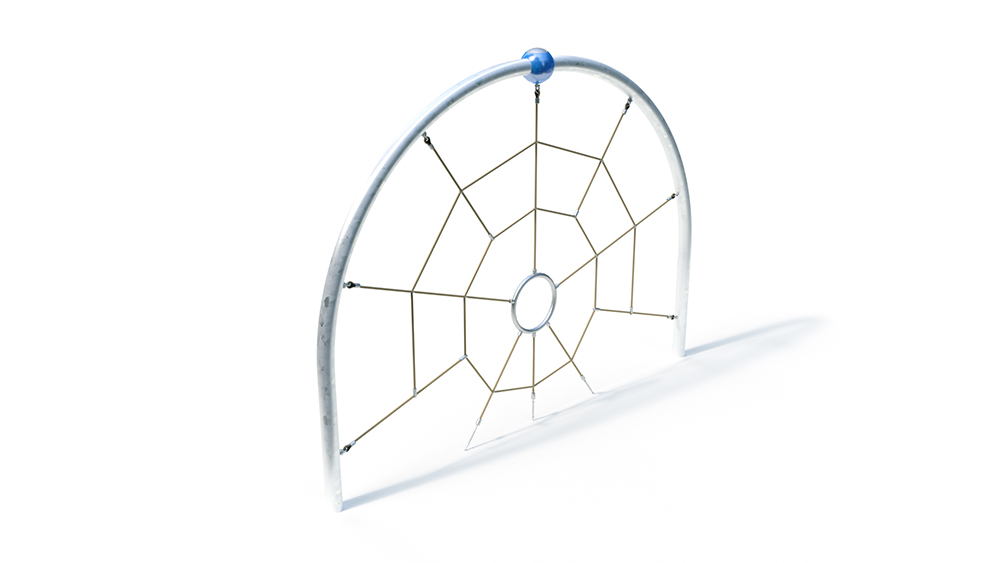

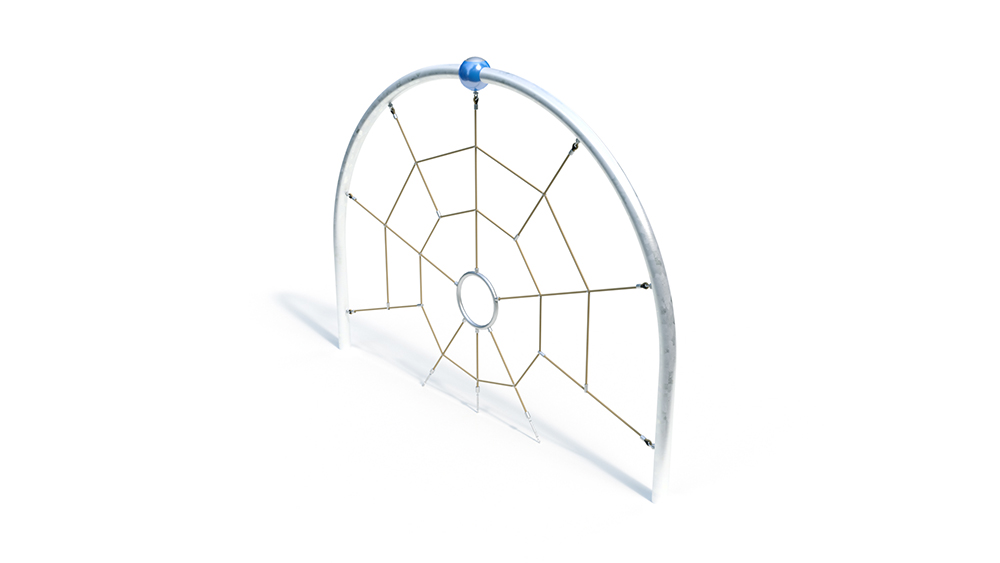

Actio 291
Key Attributes
Age Group
6+
Area of Use
Public playgrounds
Activity
-
Suitable for
Suitable for
children from 6 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
3.93 m
Total Width
0.25 m
Total Height
2.93 m
Minimum Space Length
6.93 m
Minimum Space Width
4.82 m
Minimum Space Height
2.93 m
Heaviest Single Piece
67.00 kg
(Total) Weight
150.00 kg
Free Height of Fall
2.86 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3
Foundation 2
1 piece - 0.60 x 0.60 x 0.50 m volume: 0.18 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation creation)
Technical Data
Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total
Arc 90 ° Spider Net
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Spider Net 180 °
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– cross connections and T-connecting elements in the rope network are made of aluminum
– tubular ring made of stainless steel (Ø 450 x Ø 38 x 2) welded with 6x rope connection ( Ø 48.3)
– floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles, Ø 10 mm
Foundations (on site)
Amount of concrete: m³
