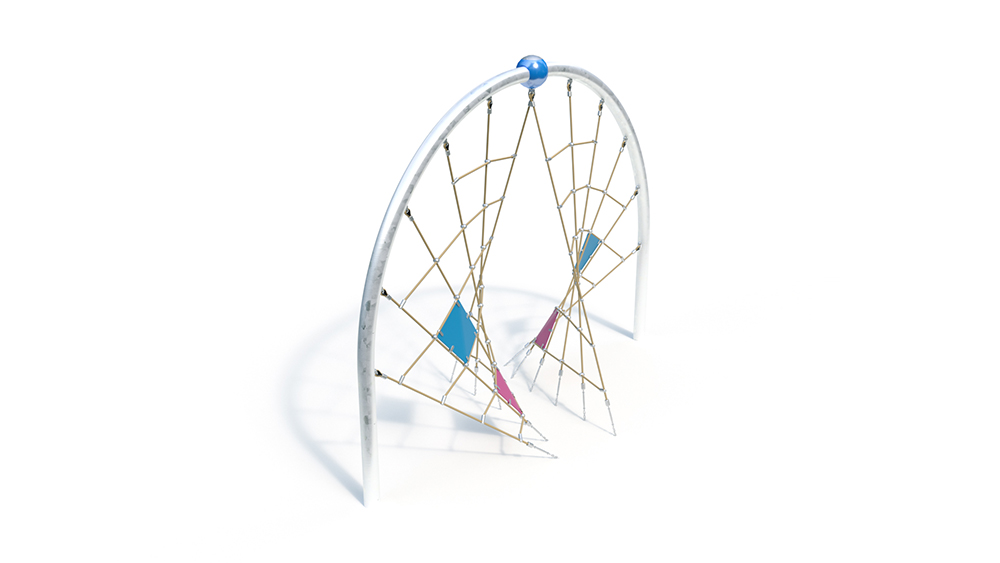

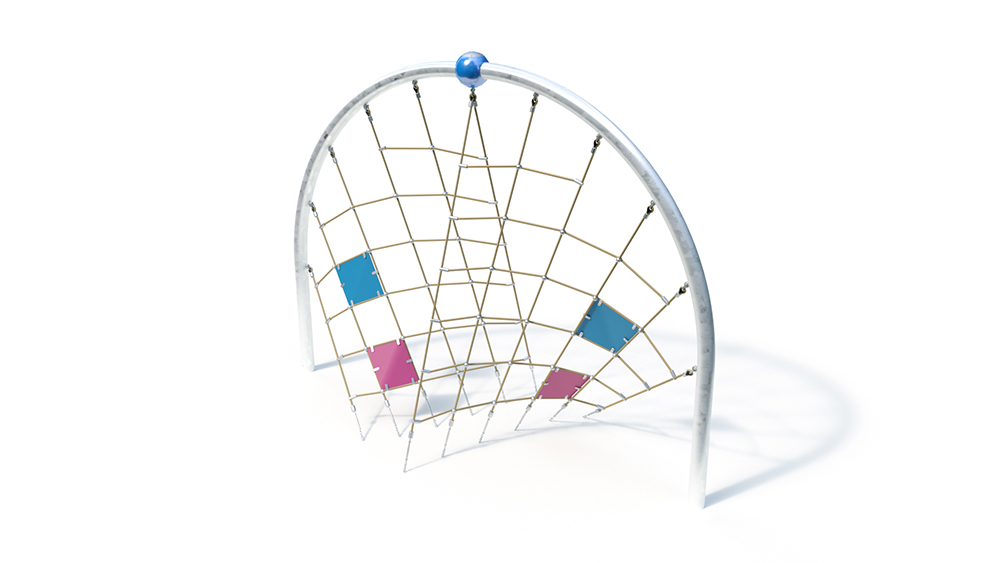

Actio 290
Key Attributes
Age Group
6+
Area of Use
Public playgrounds
Activity
-
Suitable for
Suitable for
children from 6 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
3.93 m
Total Width
1.71 m
Total Height
2.93 m
Minimum Space Length
6.93 m
Minimum Space Width
6.93 m
Minimum Space Height
4.82 m
Heaviest Single Piece
67.00 kg
(Total) Weight
160.00 kg
Free Height of Fall
2.86 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3
Foundation 2
1 piece - 2.50 x 0.30 x 0.50 m volume: 0.38 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
4 h
Assembly Details
Assembly time 2 fitters each 4 hours (without foundation creation)
Technical Data
Technical data
Equipment room: 3.93 x 1.70 x 2.93 m
Minimum space: 6.93 x 4.82 x 2.93 m
Impact area: 25 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67kg heaviest single part
160 kg in total
Arc 90 ° Twister
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Twister 180 °
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– cross connections and T-connecting elements in the cable network are made of aluminum
– rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
– fastening rubber mat through U-bracket (stainless steel)
– floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles , Ø 10 mm
Foundations (on site)
Amount of concrete: 1.04 m³
