Actio 289

Key Attributes

Age Group


Area of Use

Public playgrounds



Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

3.93 m

Total Width

3.04 m

Total Height

2.93 m

Minimum Space Length

6.93 m

Minimum Space Width

6.04 m

Minimum Space Height

2.93 m

Heaviest Single Piece

67.00 kg

(Total) Weight

180.00 kg

Free Height of Fall

2.86 m

Platform Heights



Foundation 1

2 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

Foundation 2

2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total

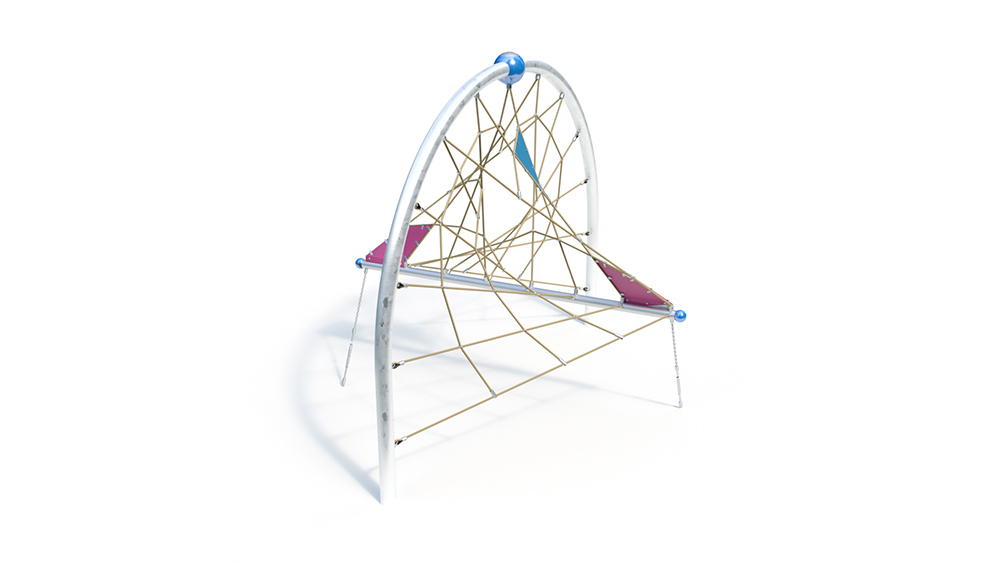

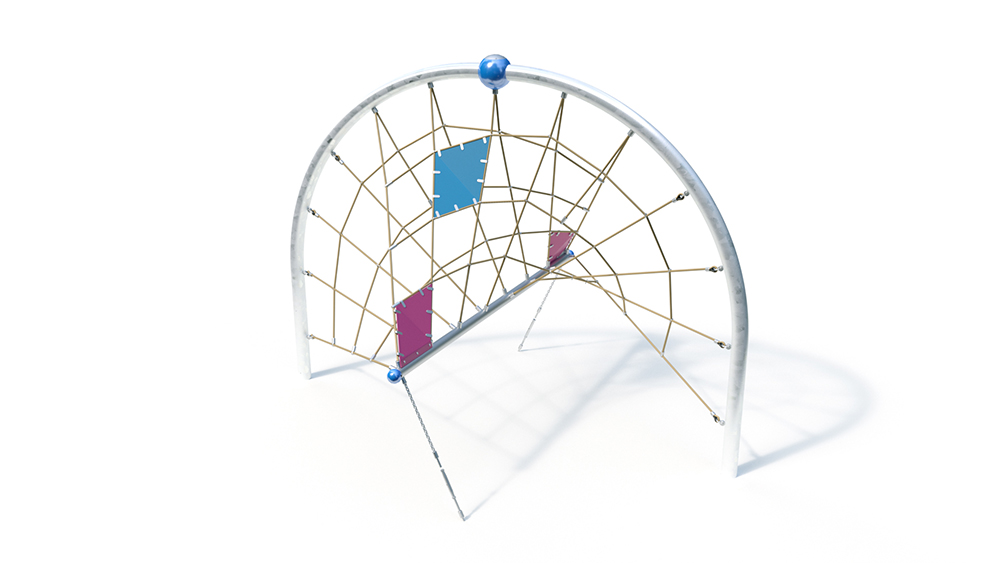

Arc 90 ° Vortex
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

– Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– Cross connections and T-connecting elements in the cable network are made of aluminum
– Rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
– Attachment of rubber mat by U-
Bracket (stainless steel) – cross tube (76.1 mm) welded with 16x clamping tube, 2x chain adapter, 2x round ball mount, 2x sheet metal for rubber holder – floor
mounting, stainless steel chains (Ø 7 mm) screwed with chain adapter single point / Hängebr. at the upper end,
screwed at the bottom with the foundation tube (Ø 38 x 2 mm)

Foundations (on site)

Amount of concrete: m³
