Actio 288

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

5.22 m

1.19 m

2.93 m

8.89 m

4.82 m

2.93 m

67.00 kg

220.00 kg

2.86 m

-

1 piece - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

1 piece - 1.40 x 0.70 x 0.50 m volume: 0.49 m3

1 piece - 2.40 x 0.85 x 0.50 m volume: 1.02 m3

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment room: 1.19 x 5.22 x 2.93 m
Minimum space: 4.82 x 8.89 x 2.93 m
Impact area: 34 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
220 kg in total

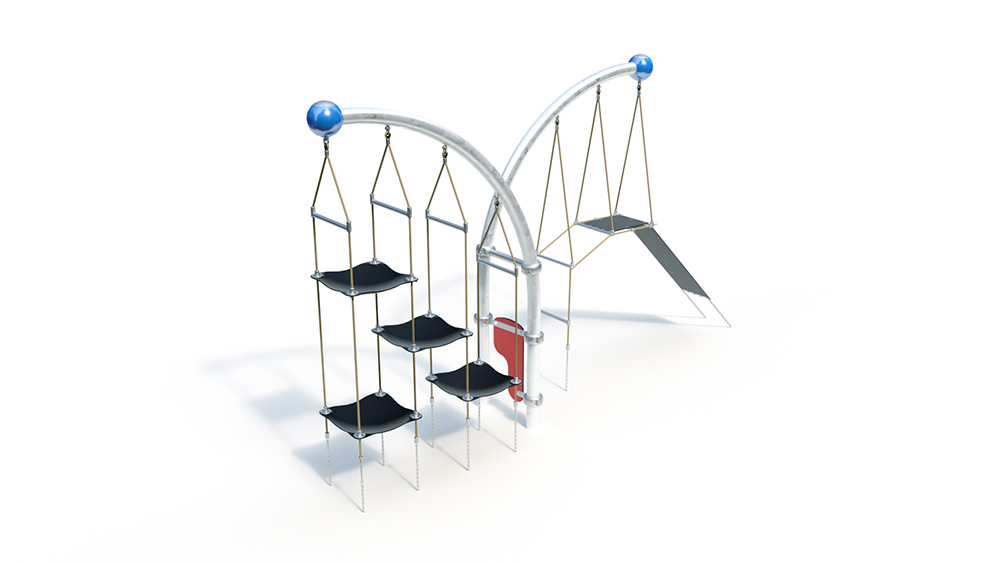

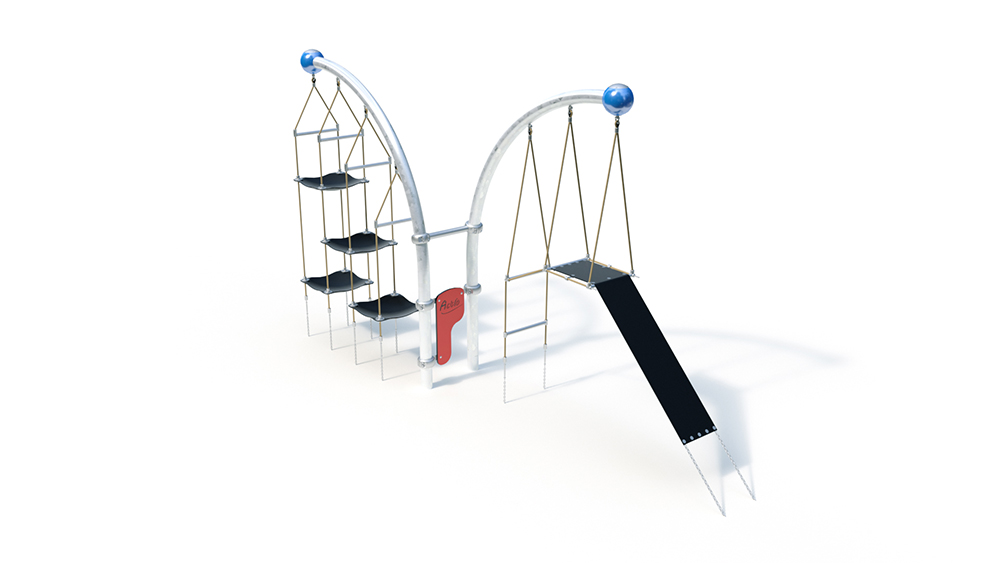

Arc 90 ° Moving Hill
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Flying Carpet
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Moving Hill
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
– fastening strap for rubber mat, stainless steel construction consisting of clamping tube (Ø 34 x 8 , 5 mm) welded to sheet metal (30 x 68 mm)
– cross clamping tube, stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded with clamping tube (Ø 34 x 8.5 mm)
– floor fastening, stainless steel chains (Ø 7 mm ) welded with flat iron (390 x 35 x 3 mm) at the upper end, screwed at the bottom with foundation tube (40 x 40 x 2 mm)
– connection to Arc 90 ° by shackles, Ø 10 mm

Flying Carpet
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel
core – elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-
reinforced rubber – cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded with a clamping tube (Ø 34 x 8.5 mm)
– floor fastening, stainless steel chains (Ø 7 mm) welded to a circular blank (Ø 90 x 3 mm) at the top, screwed at the bottom to the foundation tube (Ø 38 x 2 mm)
– Connection to Arc 90 ° with shackles, Ø 10 mm

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Foundations (on site)
1 pc. 0.70 x 0.50 x 0.50 m
1 pc. 1.40 x 0.70 x 0.50 m
1 pc. 2.40 x 0.85 x 0.50 m
amount of concrete: 1.69 m³
