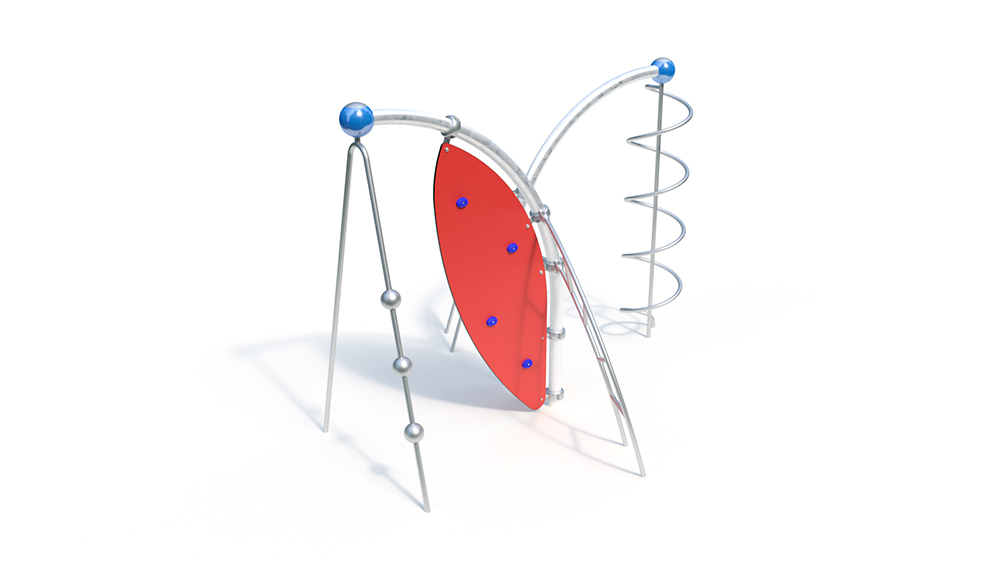

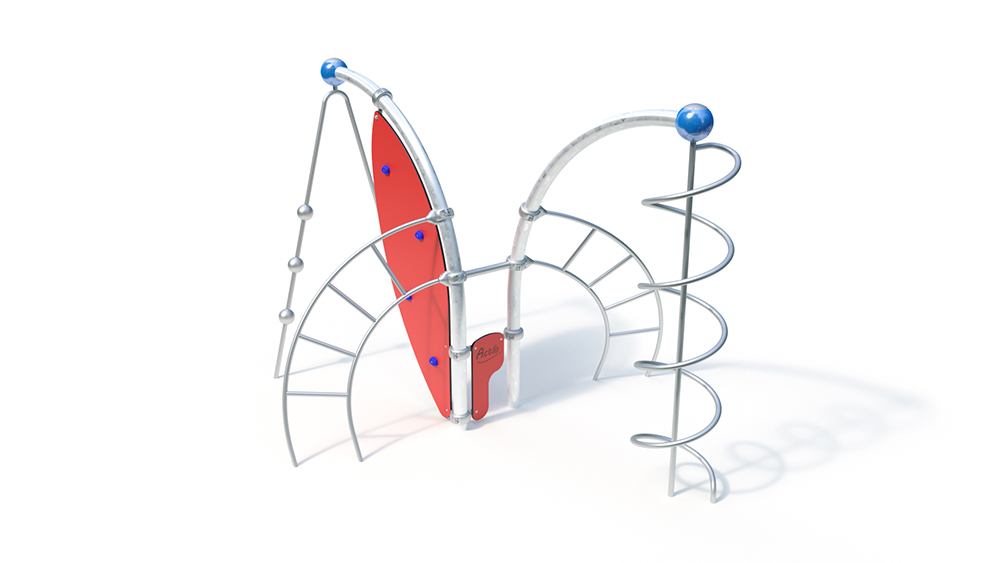

Actio 241

6+

Public playgrounds

Slide

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.19 m

3.46 m

2.93 m

8.35 m

6.46 m

2.93 m

67.00 kg

332.00 kg

2.86 m

-

1 piece - 1.70 x 1.00 x 0.50 m volume: 0.85 m3

2 pieces - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

3 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

2 pers.

4 h

Assembly time 2 fitters each 4 hours (without foundation creation)

Technical data
Equipment room: 4.19 x 3.46 x 2.93 m
Minimum space: 8.35 x 6.46 x 2.93 m
Impact area: 40 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
332 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Climbing Wall
– climbing wall made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm, with free climbing elements on both sides
– above: connection to the Actio construction element using an aluminum clamp (optionally powder-coated in RAL color of your choice) and a welded construction Stainless steel
pipe Ø 38 – below: restraint by on-site foundations

Climbing Pipe
– welded construction made of stainless steel pipe Ø 38 mm with three stainless steel balls Ø150 mm
– above: screwable connection to Actio construction
element – below: restraint through site foundations

Spring Slide
– welded construction made of stainless steel tube Ø 42.4 mm
– above: screwable connection to Actio construction
element – below: restraint through on-site foundations

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
2 pieces. Elbow 90 °
8 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.70 x 1.00 x 0.50 m
2 pieces. 0.90 x 0.40 x 0.50 m
3 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: 2.00 m³
