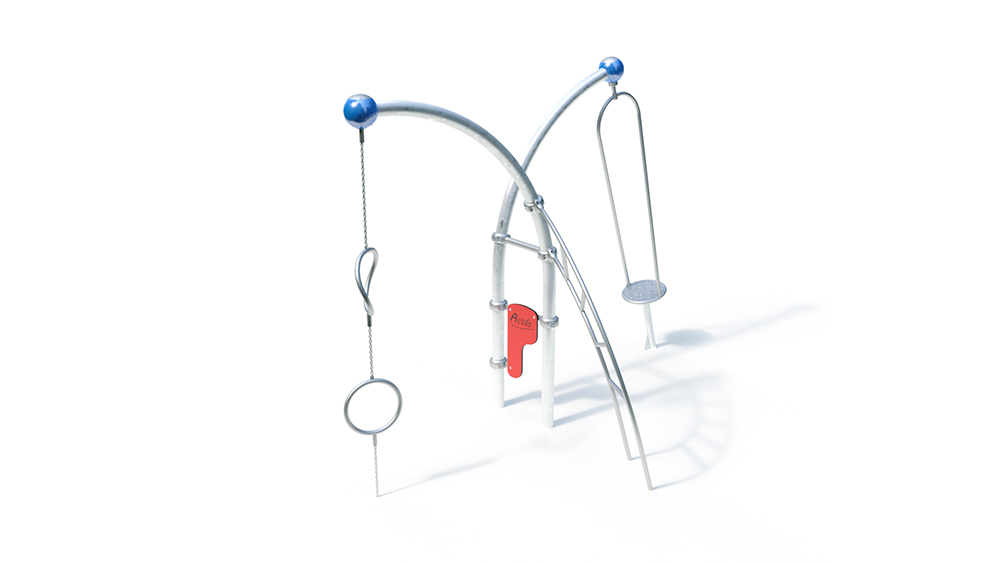

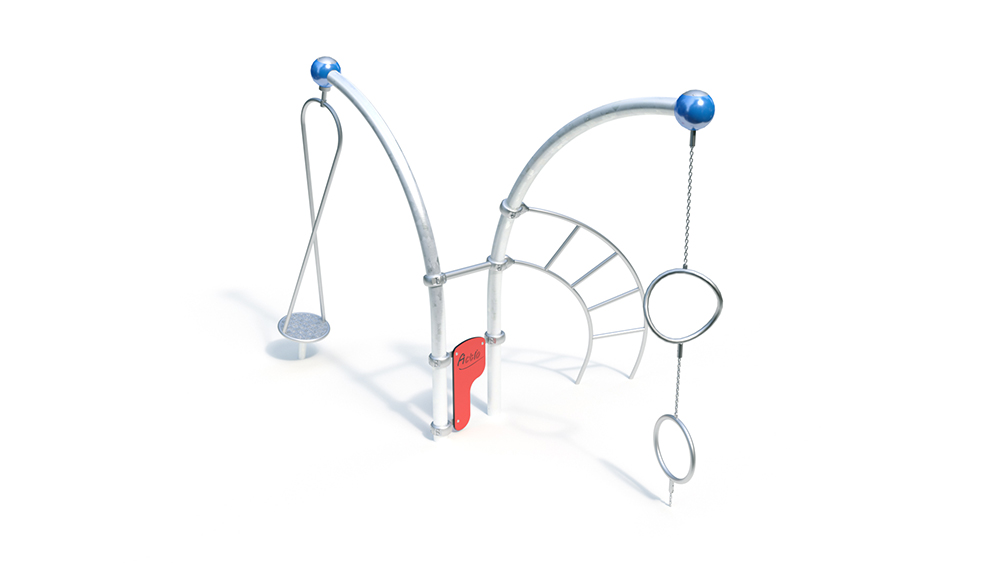

Actio 230

6+

Public playgrounds

Climb

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.40 m

2.29 m

2.93 m

7.96 m

5.33 m

2.93 m

67.00 kg

238.00 kg

1.89 m

-

1 piece - 1.70 x 1.00 x 0.50 m volume: 0.85 m3

1 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

2 pers.

4 h

Assembly time 2 fitters each 4 hours (without foundation creation)

Technical data
Equipment room: 4.29 x 2.29 x 2.93 m
Minimum space: 7.96 x 5.33 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 1.89 m
Weight: 67 kg heaviest single part
238 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Big Hurricane
– welded, twisted construction made of stainless steel tube
– rotating bottom made of profiled stainless steel
sheet – roller bearings below and above: tamper-proof and protected against dirt
– above: screwable connection to the Actio construction element
– below: anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be set in concrete

Monkey Rings
– ring combination made of stainless steel tube Ø 38 mm – 1x flat / 1x spatially twisted
– suspension and connection with 7 mm stainless steel chains and swivel
– rotatable independently of each other
– above: screwable connection to Actio construction element
– below: deflection by chain with foundation and screwed Limited ground connection

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
1 pc. Elbow 90 °
1 pc. Elbow 75 °
6 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.70 x 1.00 x 0.50 m
1 pc. 0.90 x 0.40 x 0.50 m
2 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: approx. 1.40 m³
