Actio 220

6+

Public playgrounds

Physical Activity

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

2.40 m

2.36 m

2.89 m

5.36 m

5.30 m

2.89 m

63.00 kg

163.00 kg

0.53 m

-

2 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

1 piece - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment compartment: 2.40 x 2.36 x 2.89 m
Minimum space: 5.36 x 5.30 x 2.89 m
Impact area: 21 m²
Total height: 2.89 m
Free fall height: 0.53 m
Weight: 63 kg heaviest single part
163 kg in total

Arc 75 °
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see item below)

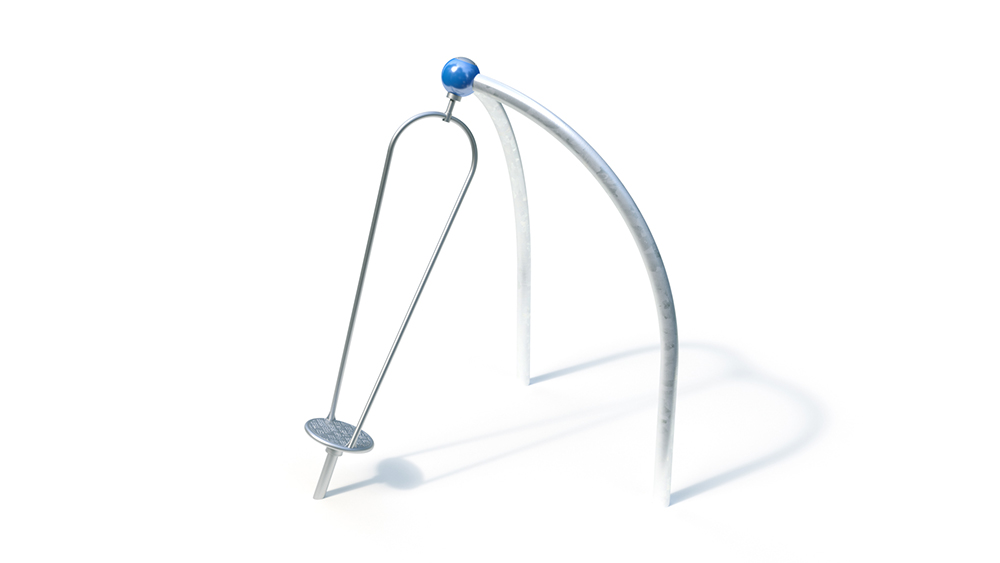

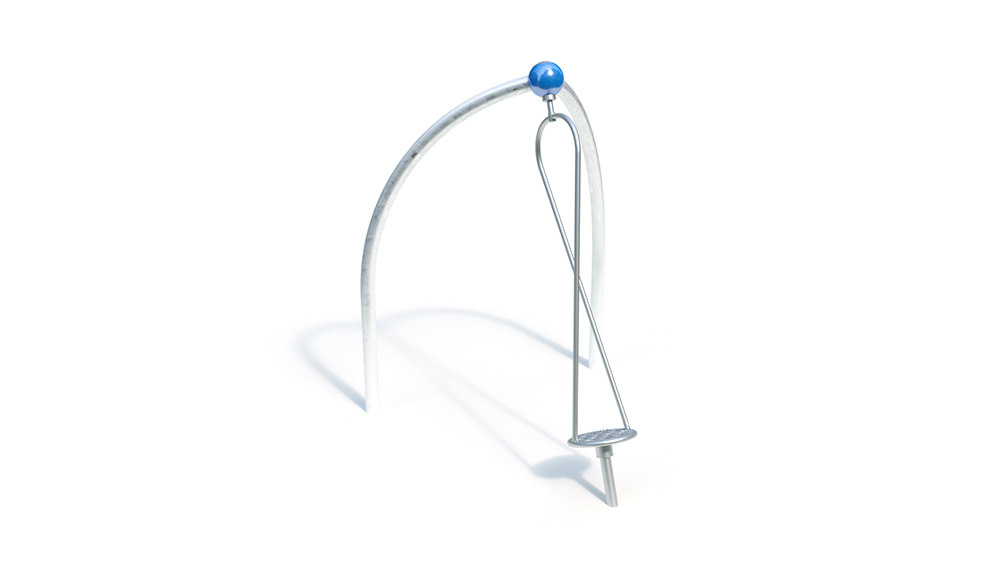

Big Hurricane
– welded, twisted construction made of stainless steel tube
– rotating bottom made of profiled stainless steel
sheet – roller bearings below and above: tamper-proof and protected against dirt
– above: screwable connection to the Actio construction element
– below: anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be set in concrete

Number of components for optional powder coating
2 pieces. 75 ° elbow

Foundations (on site)
2 pcs. 1.30 x 0.50 x 0.50 m
1 pc. 0.60 x 0.60 x 0.50 m
Amount of concrete: approx. 0.9 m³
