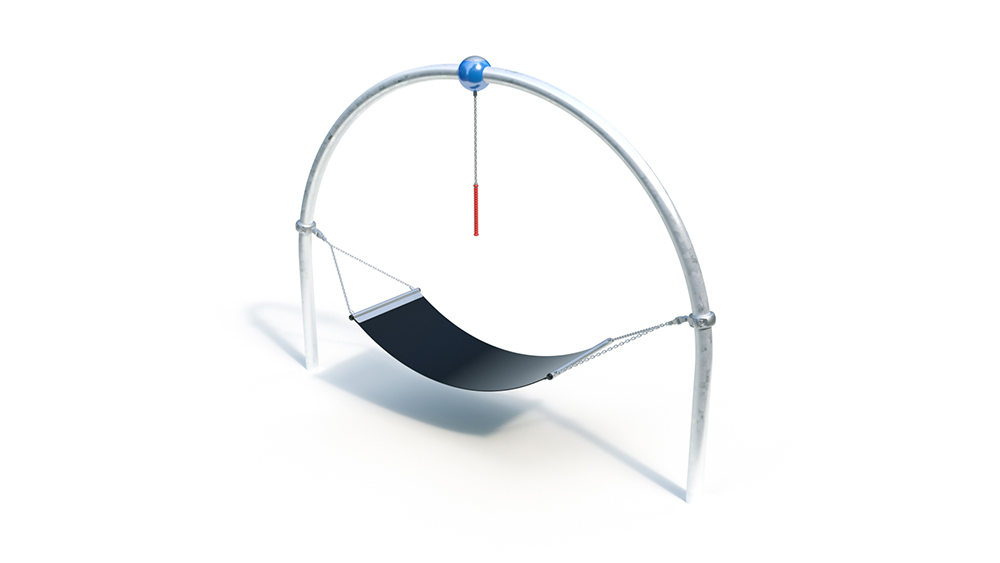

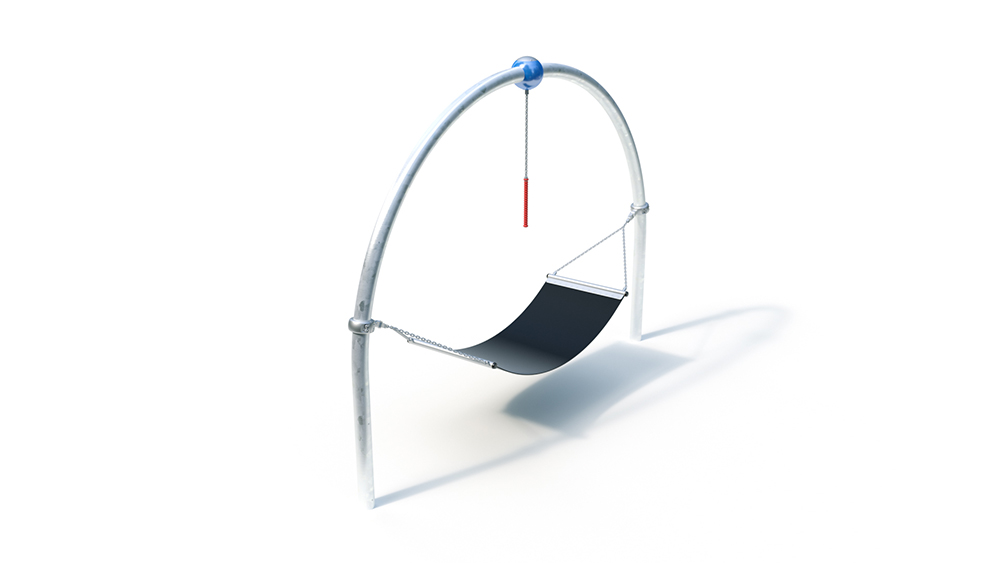

Actio 202 Kitesurfer

6+

Public playgrounds

Balance

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

3.95 m

0.85 m

2.93 m

6.95 m

3.85 m

2.93 m

62.00 kg

157.00 kg

0.86 m

-

2 pieces - 1.00 x 0.60 x 0.50 m volume: 0.24 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment room: 3.95 x 0.85 x 2.93 m
Minimum space: 6.95 x 3.85 x 2.93 m
Impact area: 22 m²
Total height: 2.93 m
Free fall height: 0.86 m
Weight: 62 kg heaviest single part
157 kg in total

Arc 90 ° Kitesurfer
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– aluminum ball, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Hanging / surfing mat
– elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
– stainless steel traverse for mounting the mat with rounded edges
– post connection via 7 mm stainless steel chains with cardanic and radially movable connection
adapters and aluminum clamps (optionally powder-coated in RAL- Color of
your choice) – Pendulum handle made of 7 mm stainless steel chain with thermally pressed and flexible rubber

Number of components for optional powder coating
2 pieces. Elbow 90 °
2 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
2 pcs. 1.00 x 0.60 x 0.50 m
amount of concrete: 0.60 m³
