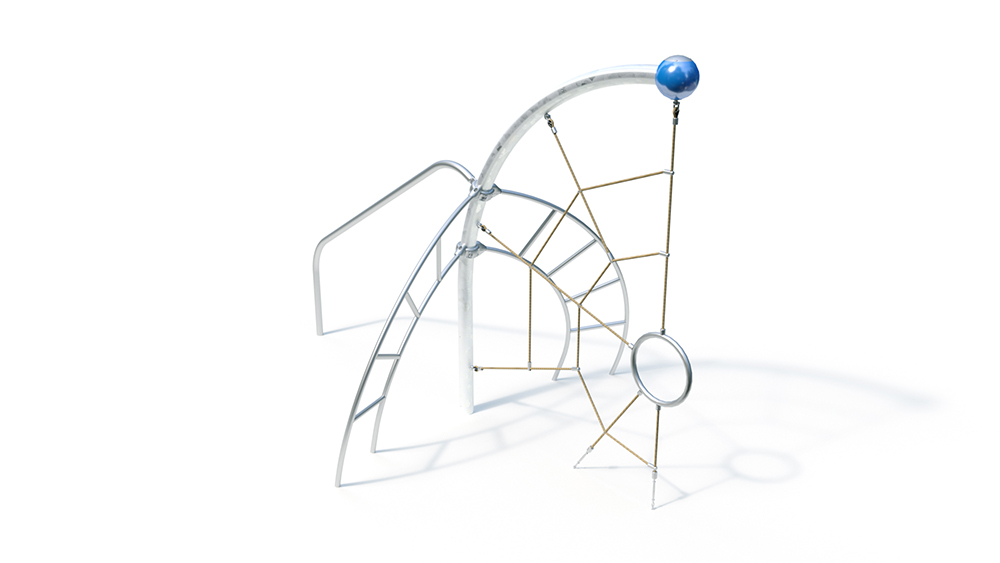

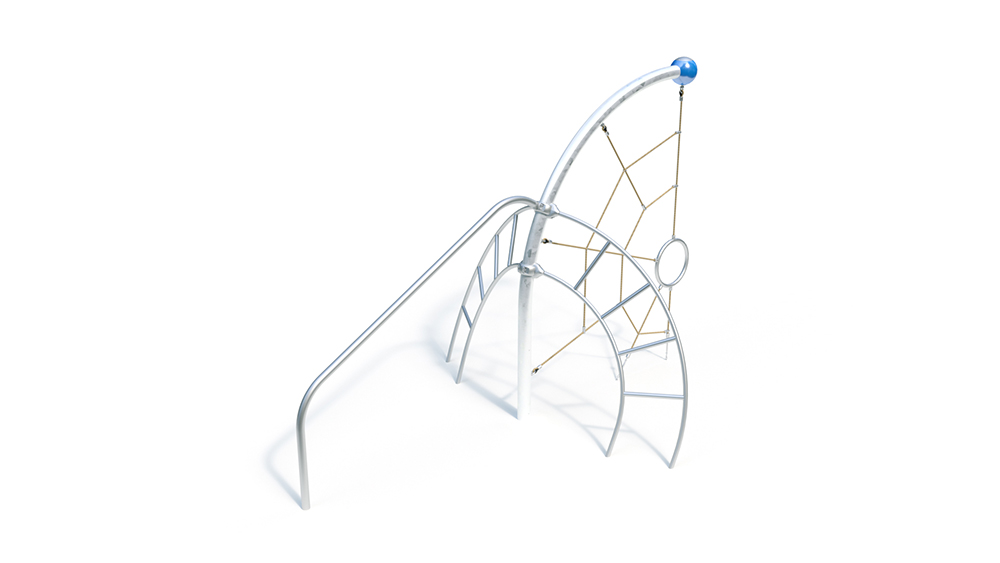

Actio 168
Key Attributes
Age Group
6+
Area of Use
Public playgrounds
Activity
-
Suitable for
Suitable for
children from 6 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
4.34 m
Total Width
2.84 m
Total Height
2.93 m
Minimum Space Length
7.90 m
Minimum Space Width
5.84 m
Minimum Space Height
2.93 m
Heaviest Single Piece
67.00 kg
(Total) Weight
164.00 kg
Free Height of Fall
2.86 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 1.30 x 0.50 x 0.50 m volume: 0.33 m3
Foundation 2
2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3
Foundation 3
2 pieces - 0.90 x 0.40 x 0.50 m volume: 0.18 m3
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation creation)
Technical Data
Technical data
Equipment room: 4.34 x 2.84 x 2.93 m
Minimum space: 7.90 x 5.84 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
164 kg in total
Arc 90 ° Spider Net
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Spider Net
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– cross connections and T-connection elements in the cable network are made of aluminum
– tubular ring made of stainless steel (Ø 450 x Ø 38 x 2) welded with 4x rope connection (Ø 48 , 3)
– Floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube ( Ø 38 x 2 mm)
– Connection to Arc 90 ° through shackles, Ø 10 mm
Bow Ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice)
– below: restraint by in-situ foundations
Pipe Slide
– welded construction made of stainless steel pipe Ø 60.3 mm
– connection to Actio construction
element by aluminum clamp (optionally powder-coated in RAL color of your choice) – below: restraint through site foundation
Foundations (on site)
1 pc. 1.3 x 0.5 x 0.5 m
2 pieces. 0.8 x 0.4 x 0.5 m
2 pieces. 0.6 x 0.6 x 0.5 m
amount of concrete: 1.10 m³
