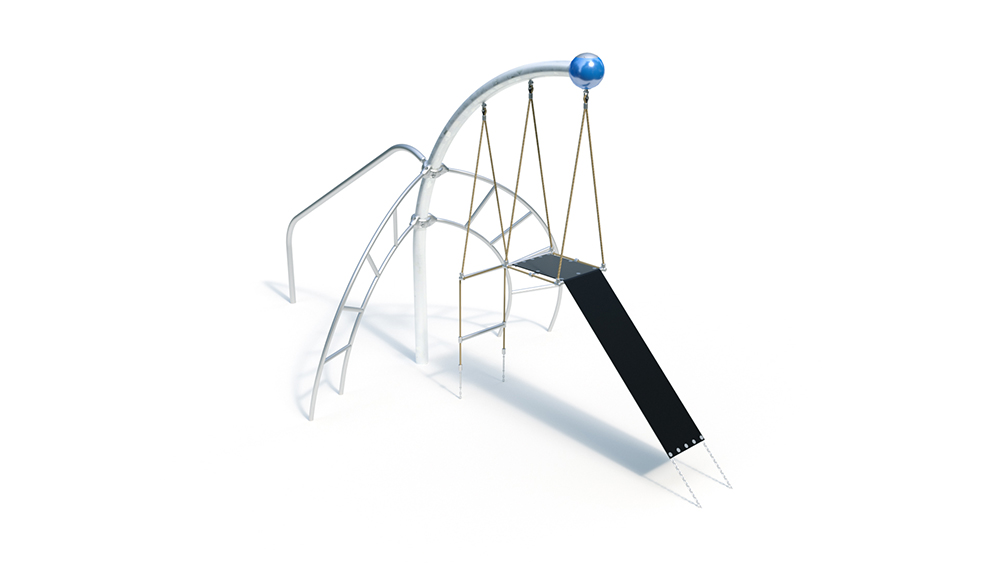

Actio 166
Key Attributes
Age Group
6+
Area of Use
Public playgrounds
Activity
-
Suitable for
Suitable for
children from 6 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
5.44 m
Total Width
2.84 m
Total Height
2.93 m
Minimum Space Length
8.44 m
Minimum Space Width
5.84 m
Minimum Space Height
2.93 m
Heaviest Single Piece
67.00 kg
(Total) Weight
153.00 kg
Free Height of Fall
2.86 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 1.40 x 0.70 x 0.50 m volume: 0.49 m3
Foundation 2
2 pieces - 0.90 x 0.40 x 0.50 m volume: 0.18 m3
Foundation 3
1 piece - 0.60 x 0.60 x 0.50 m volume: 0.18 m3
Foundation 4
1 piece - 0.70 x 0.50 x 0.50 m volume: 0.18 m3
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation creation)
Technical Data
Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total
Arc 90 ° Moving Hill
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Moving Hill
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
– fastening strap for rubber mat, stainless steel construction consisting of clamping tube (Ø 34 x 8 , 5 mm) welded to sheet metal (30 x 68 mm)
– cross clamping tube, stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded with clamping tube (Ø 34 x 8.5 mm)
– floor fastening, stainless steel chains (Ø 7 mm ) welded with flat iron (390 x 35 x 3 mm) at the upper end, screwed at the bottom with foundation tube (40 x 40 x 2 mm)
– connection to Arc 90 ° by shackles, Ø 10 mm
Bow Ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations
Pipe Slide
– welded construction made of stainless steel pipe Ø 60.3 mm
– connection to Actio construction
element by aluminum clamp (optionally powder-coated in RAL color of your choice) – below: restraint through site foundation
Foundations (on site)
1 pc. 1.4 x 0.7 x 0.5 m
2 pieces. 0.9 x 0.4 x 0.5 m
1 pc. 0.6 x 0.6 x 0.5 m
1 pc. 0.7 x 0.5 x 0.5 m
amount of concrete: 1.21 m³
