Actio 164

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

2.11 m

2.09 m

2.93 m

5.33 m

5.76 m

2.93 m

67.00 kg

107.00 kg

2.86 m

-

1 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

1 piece - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

1 piece - 2.50 x 0.30 x 0.50 m volume: 0.38 m3

-

-

-

2 pers.

3 h

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total

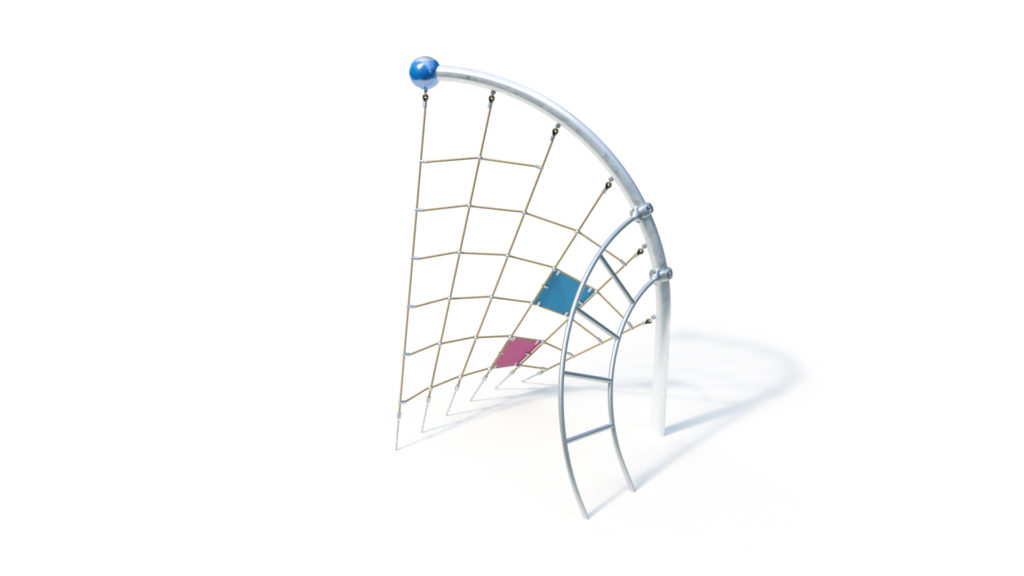

Arc 90 ° Twister
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Twister
– Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– Cross connections and T-connecting elements in the cable network are made of aluminum
– Rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
– Attachment of rubber mat by U- Bracket (stainless steel)
– floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles, Ø 10 mm

Bow Ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Foundations (on site)
1 pc. 1.3 x 0.5 x 0.5 m
1 pc. 0.9 x 0.4 x 0.5 m
3 pcs. 2.5 x 0.3 x 0.5 m
amount of concrete: 0.89 m³
