Actio 160
Key Attributes
Age Group
6+
Area of Use
public playgrounds
Activity
-
Suitable for
Suitable for
children from 6 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
2.09 m
Total Width
0.60 m
Total Height
2.93 m
Minimum Space Length
5.76 m
Minimum Space Width
4.82 m
Minimum Space Height
2.93 m
Heaviest Single Piece
67.00 kg
(Total) Weight
106.00 kg
Free Height of Fall
2.86 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 2.40 x 0.85 x 0.50 m volume: 1.02 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation creation)
Technical Data
Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total

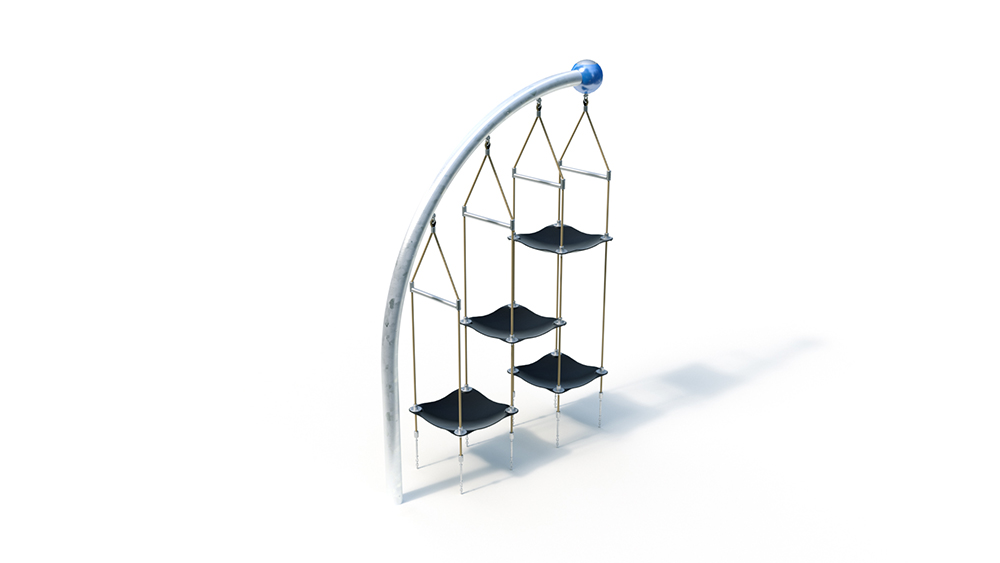

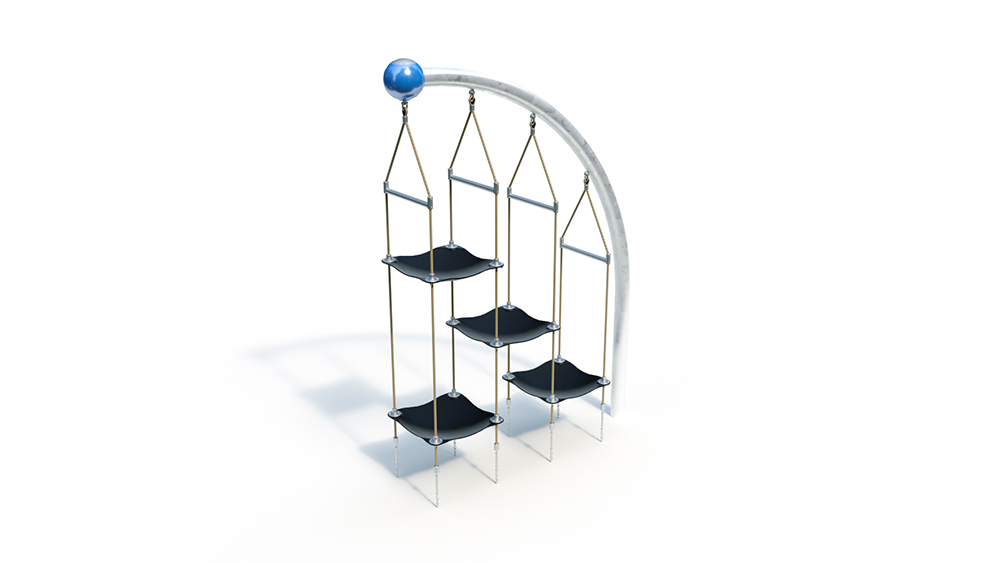

Arc 90 ° Flying Carpet
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Flying Carpet
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel
core – elastic mat element made of 8 mm thick, PAH-free and 4-fold textile
-reinforced rubber – cross clamping tube, welded stainless steel construction consisting of tube (Ø 33, 7 x 2 mm) welded with a clamping tube (Ø 34 x 8.5 mm)
– floor fastening, stainless steel chains (Ø 7 mm) welded to a circular blank (Ø 90 x 3 mm) at the top, screwed at the bottom to the foundation tube (Ø 38 x 2 mm )
– Connection to Arc 90 ° by shackles, Ø 10 mm
Foundations (on site)
1 pc. 2.40 x 0.85 x 0.50 m
amount of concrete: 1.02 m³
