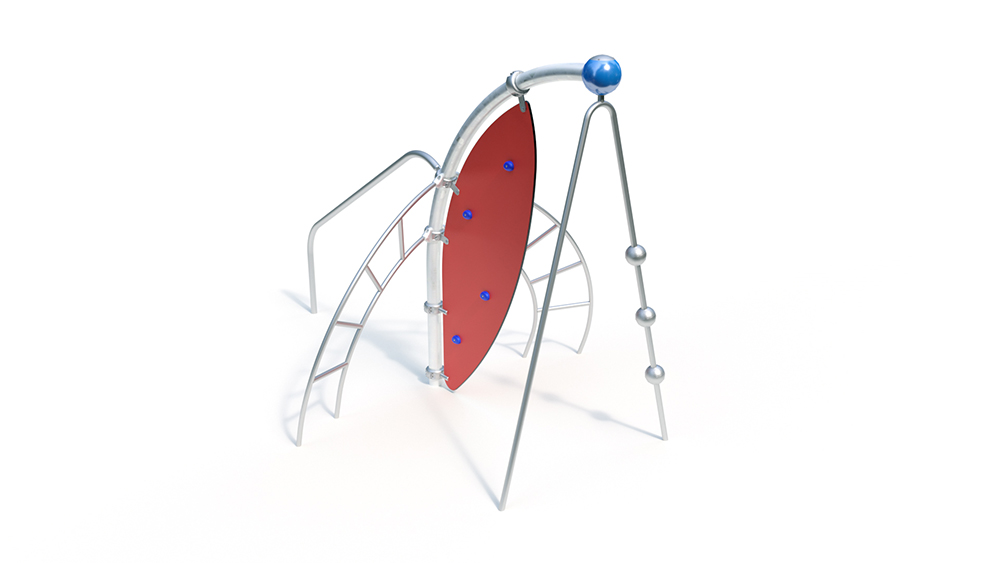

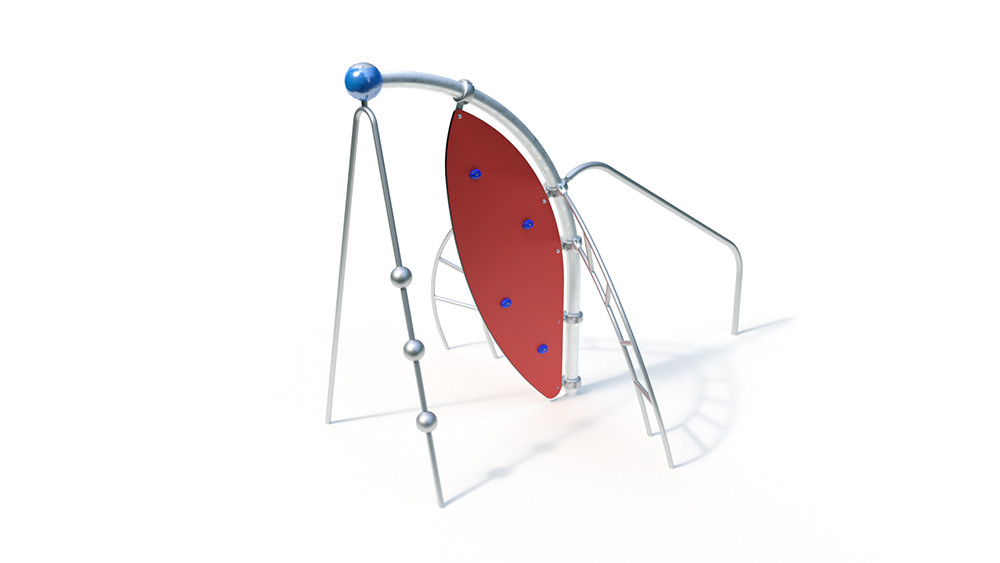

0-27134-001

Actio 134

Key Attributes

Age Group

6+

Area of Use

public playgrounds

Activity

Slide

Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

4.23 m

Total Width

2.84 m

Total Height

2.93 m

Minimum Space Length

8.13 m

Minimum Space Width

5.84 m

Minimum Space Height

2.93 m

Heaviest Single Piece

67.00 kg

(Total) Weight

214.00 kg

Free Height of Fall

2.86m

Platform Heights

-

Foundations

Foundation 1

1 piece - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

Foundation 2

1 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

Foundation 3

4 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 4.23 x 2.29 x 2.93 m
Minimum space: 7.95 x 5.30 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
214 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Climbing Wall
– climbing wall made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm, with free climbing elements on both sides
– above: connection to the Actio construction element using an aluminum clamp (optionally powder-coated in RAL color of your choice) and a welded construction Stainless steel
pipe Ø 38 – below: restraint by on-site foundations

Climbing Pipe
– welded construction made of stainless steel pipe Ø 38 mm with three stainless steel balls Ø150 mm
– above: screwable connection to Actio construction
element – below: restraint through site foundations

Pipe Slide
– welded construction made of stainless steel pipe Ø 60.3 mm
– connection to Actio construction
element by aluminum clamp (optionally powder-coated in RAL color of your choice) – below: restraint through site foundation

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
1 pc. Elbow 90 °
5 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.30 x 0.50 x 0.50 m
1 pc. 0.90 x 0.40 x 0.50 m
4 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: 1.23 m³
