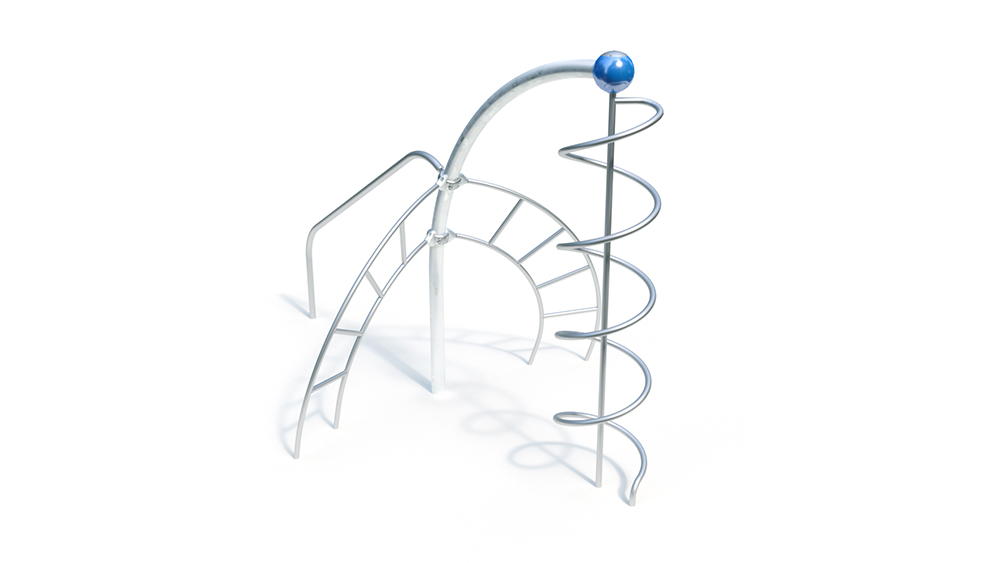

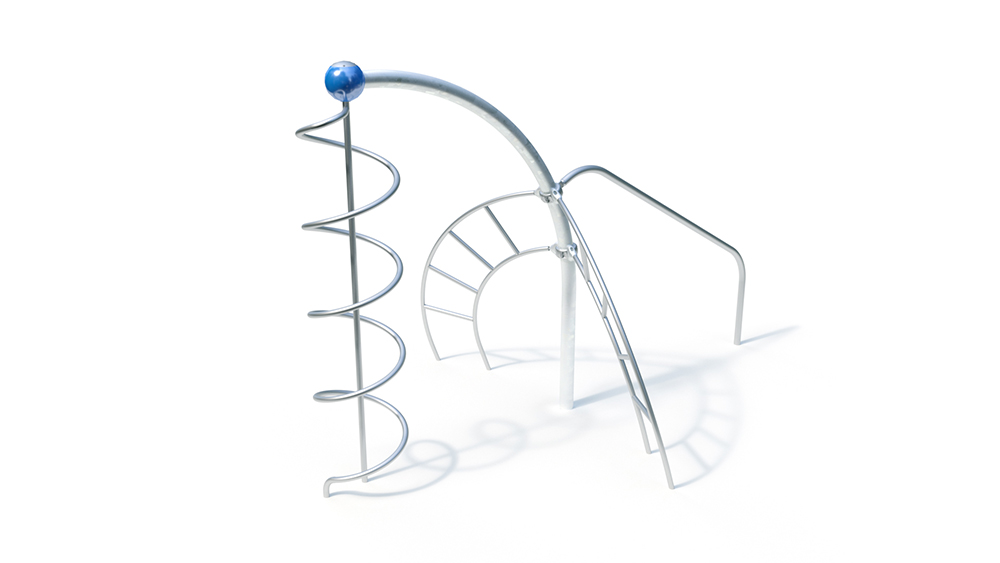

Actio 120

6+

public playgrounds

Slide

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.43 m

2.84 m

2.93 m

7.90 m

5.84 m

2.93 m

67.00 kg

166.00 kg

2.86 m

-

1 piece - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

2 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment compartment: 2.84 x 4.43 x 2.93 m
Minimum space: 5.84 x 7.90 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
166 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Spring Slide
– welded construction made of stainless steel tube Ø 42.4 mm
– above: screwable connection to Actio construction
element – below: restraint through on-site foundations

Pipe Slide
– welded construction made of stainless steel pipe Ø 60.3 mm
– connection to Actio construction
element by aluminum clamp (optionally powder-coated in RAL color of your choice) – below: restraint through site foundation

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
1 pc. Elbow 90 °
2 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.30 x 0.50 x 0.50 m
2 pieces. 0.90 x 0.40 x 0.50 m
2 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: approx. 1.1 m³
