0-28060-500

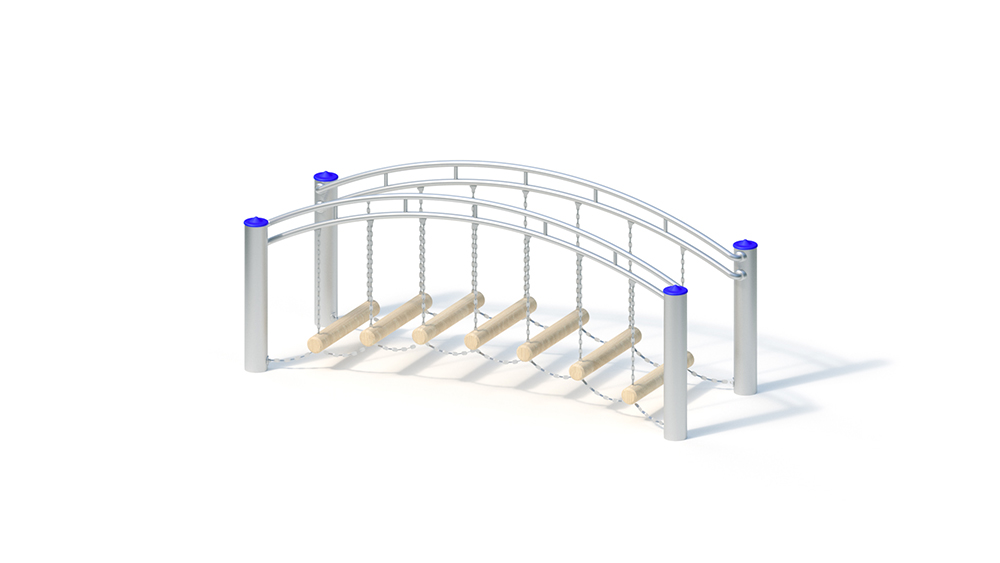

Wobbly bow

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Balance

Suitable for

Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

-

Total Length

2.55 m

Total Width

0.95 m

Total Height

1.10 m

Minimum Space Length

5.55 m

Minimum Space Width

3.95 m

Minimum Space Height

1.10 m

Heaviest Single Piece

60.00 kg

(Total) Weight

115.00 kg

Free Height of Fall

0.40 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 2.55 m
Minimum space: 3.95 x 5.55 m (20 m²)
Total height: 1.10 m
Bridge height : 0.40 m
Weight: 60 kg heaviest individual part
115 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm covered with non-detachable post caps made of stainless steel.

Attachments
– Loose sheets of tandem Traverse, running from black locust wood Ø 10 cm, delicate railing chains made of stainless steel

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³

Free fall
0.40 m
