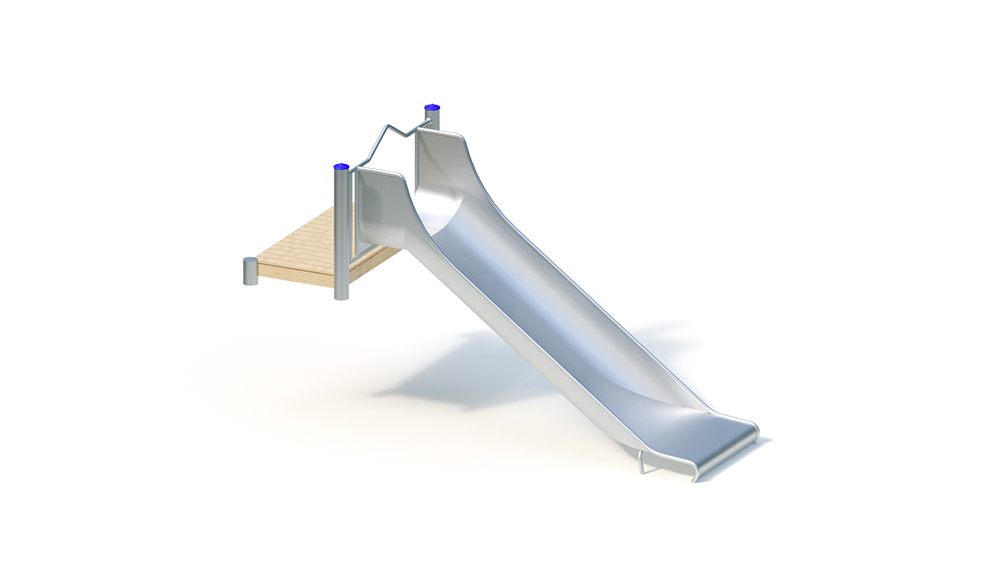

Wide slide (1.40)
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
3.60 m
Total Width
1.75 m
Total Height
2.40 m
Minimum Space Length
7.40 m
Minimum Space Width
4.75 m
Minimum Space Height
3.00 m
Heaviest Single Piece
188.00 kg
(Total) Weight
235.00 kg
Free Height of Fall
1.50 m
Platform Heights
0.20 m
Foundations
Foundation 1
1.25 x 0.40 x 0.40 m volume: 0.20 m3
Foundation 2
-
Foundation 3
-
Foundation 4
0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Base area: approx. 1.75 x 3.90 m
Minimum space: approx . 4.75 x 7.40 m
Platform height
: 0.20 m
Slide installation height: 0.20 m Sitting height: 0.30 m Slide installation height
above
slide outlet Zero: 1 , 40 m
(for a hill height of 1.20 m) Slide inclination:
36 ° Slide width:
1.10 m
Slide plate thickness: 2.5 mm
Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable post caps made of stainless steel.
Support posts that are flush with the platform are covered with welded circular blanks made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Add-on parts – add -on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 0.46 m³
Free fall height
platform: 0.20 m
slide: Depending on the course of the terrain, the free fall height and the extent of the impact surface result from the vertical distance between the lower edge of the slide and the upper edge of the terrain.
The impact surface in the slide area must be equipped with a floor material that meets the requirements of Table 4 (see EN 1176-1). If another material is to be used, its shock-absorbing properties must be proven by testing according to EN 1177: 2008. The floor area surrounding the outlet part of the slide must meet the requirements for a critical fall height of at least 1000 mm (see EN 1176-3).
