0-60154-700

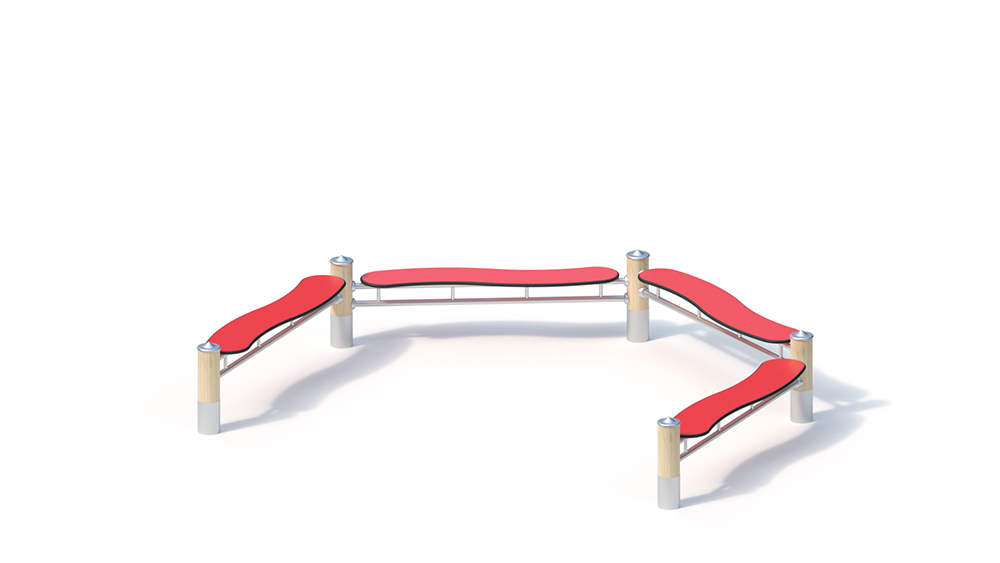

Wave bench

Key Attributes

Age Group

1+

Area of Use

Public Playgrounds

Activity

Social Activity

Suitable for

Suitable for
all age groups
public playgrounds etc.

Techincal Specifications

Lifting Device

-

Total Length

3.10 m

Total Width

2.55 m

Total Height

0.55 m

Minimum Space Length

6.10 m

Minimum Space Width

5.55 m

Minimum Space Height

0.55 m

Heaviest Single Piece

15.00 kg

(Total) Weight

100.00 kg

Free Height of Fall

-

Platform Heights

-

Foundations

Foundation 1

5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

1 person

Assembly Time

2 h

Assembly Details

Assembly time 1 fitter 1.5 hours (without foundation creation)

Technical Data

Technical data
Base area: 2.55 x 3.10 m
Seat height: 0.40 / 0.45 m
Weight: 15 kg heaviest individual part
100 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– bench top, wave-shaped, made of colored, highly weather-resistant HPL laminate board, 20 mm

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
5 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.32 m³
