0-33495-000

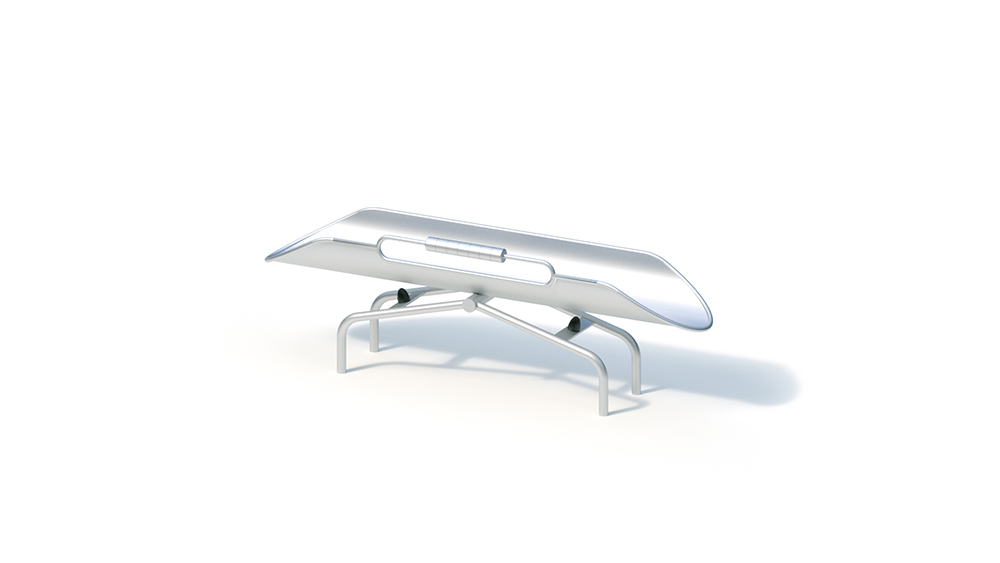

Water scales
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
2.05 m
Total Width
0.45 m
Total Height
1.05 m
Minimum Space Length
5.05 m
Minimum Space Width
3.45 m
Minimum Space Height
1.05 m
Heaviest Single Piece
-
(Total) Weight
55.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
0.50 x 0.50 x 0.40 m volume: 0.10 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Base area: 0.45 x 2.05 m
Height: approx. 1.05 m
Weight: 55 kg in total
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution.
Sheet thickness: 2.5 mm,
tube: Ø 20 mm and Ø 38 mm
Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.40 m
amount of concrete: 0.20 m³
