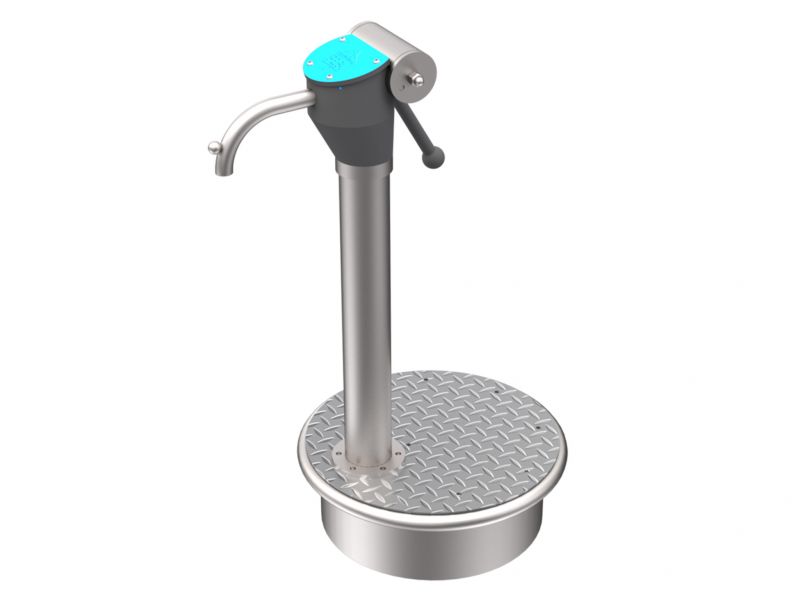

Water Pump Stalex

Water Pump – STALEX (platform included) made of stainless steel. The distance from the outlet to the gutter should not exceed 30cm.

– A beam pump made of stainless steel with an HPL cover and Spiel-Bau logo (color can be chosen from the standard color range).
– The platform has a diameter of approximately 50cm and is made of stainless steel, with a height of approximately 30cm.
– The connection is equipped with a 3/4 inch external thread.
– A house water pressure connection with a pressure range of 1-6 bar is required.
– The pump should be permanently connected under the platform, securely fixed in the ground.
– Equipped with ABS for safety shutdown when permanently activated.
– The flow rate can be adjusted for 10-20 seconds after activation.
– The flow volume is 3.0 l/min at a flow pressure of 3 bar.
– Includes hygienic flush and water filter.
– Pressure shock absorbers are not necessary due to the construction.
– Drainage for winter is available, without the need for initial casting.

Hose connection is possible using a Gardena coupling – please contact us for more information.

Our water pump comes with a full guarantee, valid for up to one year after delivery. This guarantee is subject to the proper usage of the water pump as instructed in the operation manual. It does not cover damage caused by incorrect operation, negligence, or serious negligence. Spiel-Bau’s obligations are limited to repairing or replacing the defective parts. Labor costs are not covered by the guarantee. The guarantee also does not cover maintenance, cleaning, damage caused by attaching foreign parts, natural wear and tear, or damage to the surface or color.

Made in Germany!
The posts are made of stainless steel tubes.
All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations.
All connecting parts are made of stainless steel or galvanized.
Only self-locking nuts are used.

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age2-10
Download Product Sheet

Technical Information


370 x 390 cm

Fall Height Group

20 cm



stainless steel, HPL
