0-34072-700

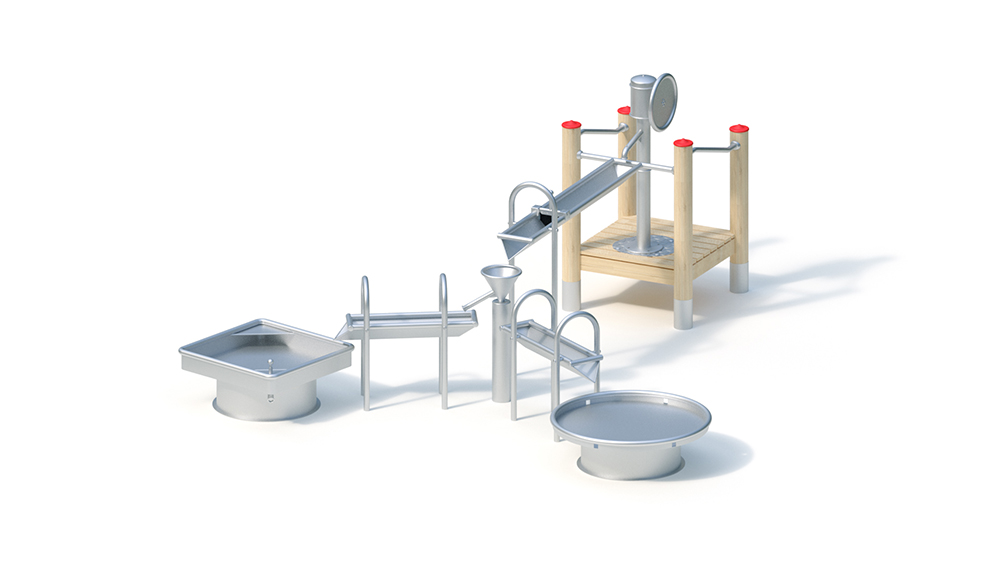

Water play area

Key Attributes

Age Group

4+

Area of Use

Public Playgrounds

Activity

Social

Suitable for

Suitable for
children from 4 years,
public playgrounds etc.,
manual activities

Techincal Specifications

Lifting Device

-

Total Length

3.95 m

Total Width

3.65 m

Total Height

1.65 m

Minimum Space Length

6.95 m

Minimum Space Width

6.65 m

Minimum Space Height

1.65 m

Heaviest Single Piece

45.00 kg

(Total) Weight

310.00 kg

Free Height of Fall

0.40 m

Platform Heights

0.40 m

Foundations

Foundation 1

5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

5 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Installation time 2 fitters 2 hours each (without foundation creation, without water connection)

Technical Data

Technical data
Total height: approx. 1.65 m
Base area: approx. 3.65 x 3.95 m
Minimum space: approx . 6.65 x 6.95 m (36 m²)
Platform height: 0.40 m
Weight: 45 kg heaviest individual part
310 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform floors Platform floors
made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection. With profiled stainless steel sheet.

Attachments
– Step railing made of stainless steel tube, Ø 33.7 x 2 mm

K&K water pump with handwheel
Article No. 0-33131-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with hand wheel, for example be removed during the frosty period.
Sealing cover (“wintering plate”) for the remaining lower part of the pump is included.

Please note:
When connecting the water pump to a pressurized water line, a K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.

K&K water gutter 1.60 m
welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. With connection for posts with stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation.
Including storage flap, freely positionable, handle made of stainless steel, sheet made of rubber with fabric insert. Clamping part for attaching to pipe Ø 38 mm.

K&K distribution
funnel Rotatable funnel made of stainless steel with inclined outlet pipe for water distribution, infinitely swiveling through 360 °; attached to posts made of stainless steel tube Ø 120 x 3 mm.

K&K water gutter 0.80 m, 2 pieces
Welded stainless steel construction Sheet thickness: min. 2 mm. Sloping spout.
Stepless incline for installation for the required gradient for the inlet and outlet of the water through additional elevation

K&K mud plate (0.25) Article No. 0-33450-000
Welded stainless steel construction with 6 water drainage openings . Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

K&K water table (0.25) Article No. 0-33440-000
Total height: 0.40 m
Welded stainless steel construction with 1 water drainage pipe . Rubber cone closure with lock for complete water withdrawal. 2 shelves. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling out differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
5 pcs. 0.40 x 0.40 x 0.40 m
5 pieces. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.95 m³

Free fall
0.40 m
