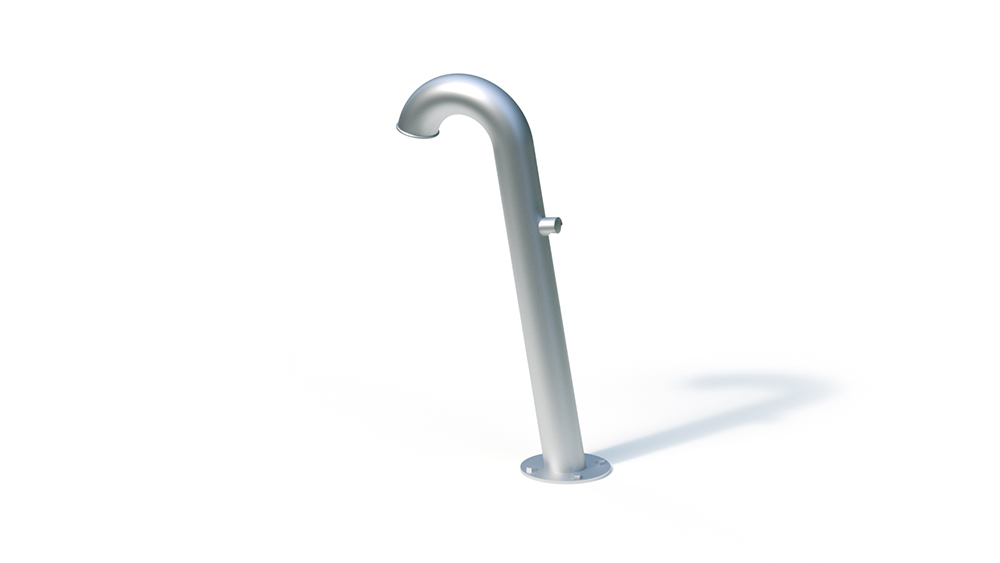

Water dispenser including flange cover plate
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
0.40 m
Total Width
0.40 m
Total Height
1.13 m
Minimum Space Length
3.40 m
Minimum Space Width
3.40 m
Minimum Space Height
1.13 m
Heaviest Single Piece
-
(Total) Weight
25.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Height: 1.13 m
Weight: 25 kg in total
Stainless steel construction with solenoid valve for direct connection (3/4 inch) to a pressurized water line (equal to or greater than 1/2 inch or equal to or greater than DN 15).
Control unit consisting of control module, waterproof, welded 6V battery and piezo button. Factory setting of a hygienic flush (12 hours after last actuation).
Including wintering plate.
Note: Depending on the cleanliness of the water (suspended matter, dirt particles, etc.), we recommend installing a fine filter (e.g. K&K item no. 3990039) to prevent the solenoid valve from becoming dirty and thus prevent malfunctions.
Installation and connection of the water tap should be carried out by a specialist installation company.
