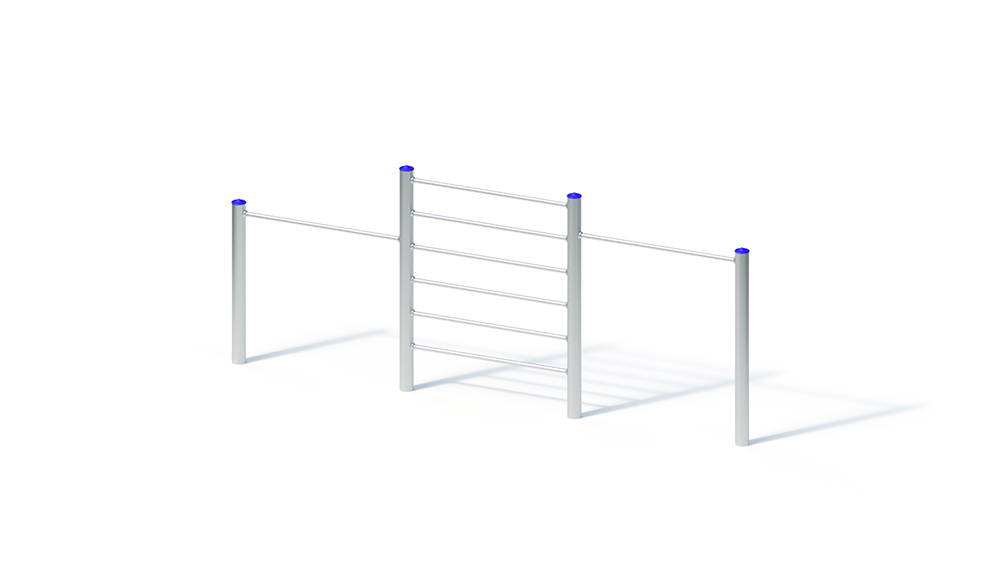

Wall bars
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities.
Techincal Specifications
Lifting Device
-
Total Length
4.93 m
Total Width
0.13 m
Total Height
2.03 m
Minimum Space Length
8.02 m
Minimum Space Width
3.70 m
Minimum Space Height
2.03 m
Heaviest Single Piece
25.00 kg
(Total) Weight
115.00 kg
Free Height of Fall
1.92 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Length: 4.95 m
Minimum space: 8.05 x 3.70 m (26 m²)
Total height: 2.05 m
Bar height : 1.35 / 1.65 m Wall bar height
: 1.90 m
Weight: 25 kg heaviest individual part
115 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable post caps made of stainless steel.
Attachments
climbing rungs made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof
Metal components: stainless steel.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.
Foundations (on site)
4 pcs. 0.50 x 0.50 x 0.60 m
amount of concrete: 0.60 m³
Free fall height
1.92 m
