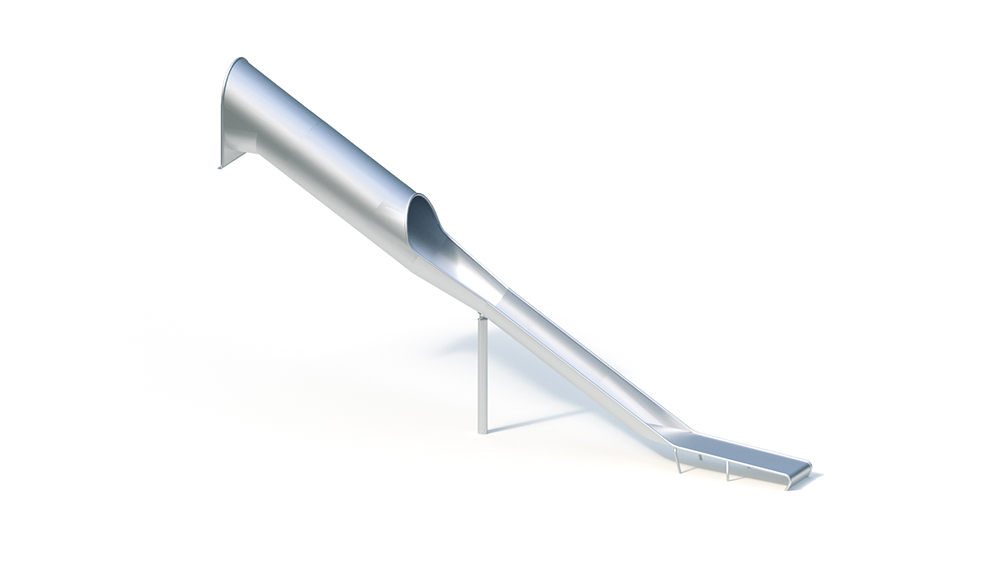

Tunnel hill slide 30 ° Ah 3.00 m

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

7.65 m

Total Width

0.95 m

Total Height

4.30 m

Minimum Space Length

9.65 m

Minimum Space Width

4.85 m

Minimum Space Height


Heaviest Single Piece

320.00 kg

(Total) Weight

340.00 kg

Free Height of Fall

1.95 m

Platform Heights



Foundation 1

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 2

1 piece - 1.40 x 0.75 x 0.40 m volume: 0.42 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Installation time 2 fitters 2 hours each plus lifting gear (without foundation creation)

Technical Data

Technical data
Base area: approx. 1.00 x 7.65 m
Minimum space: approx . 4.00 x 9.65 m (when installed on a flat surface)
approx. 3.60 x 9.65 m (when installed on a slope) Slide installation height:
3.00 m Slide inclination:
30 ° Slide width:
0.60 / 0.80 m
Slide plate thickness: 2.5 mm

Please note that in the area of ​​the flange on the slide seat there must be a surface suitable for flanging (wooden platform or planks, concrete foundation, etc.) on site.

Slide segments made of stainless steel are particularly quiet thanks to their tubular trough shape, welded to a one-piece slide.
Course: straight
Including K&K landslide support post, support post made of stainless steel tube Ø 120 mm, mounting flange made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundations (on site)
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 1.40 x 0.75 x 0.40 m
amount of concrete: 0.52 m³
