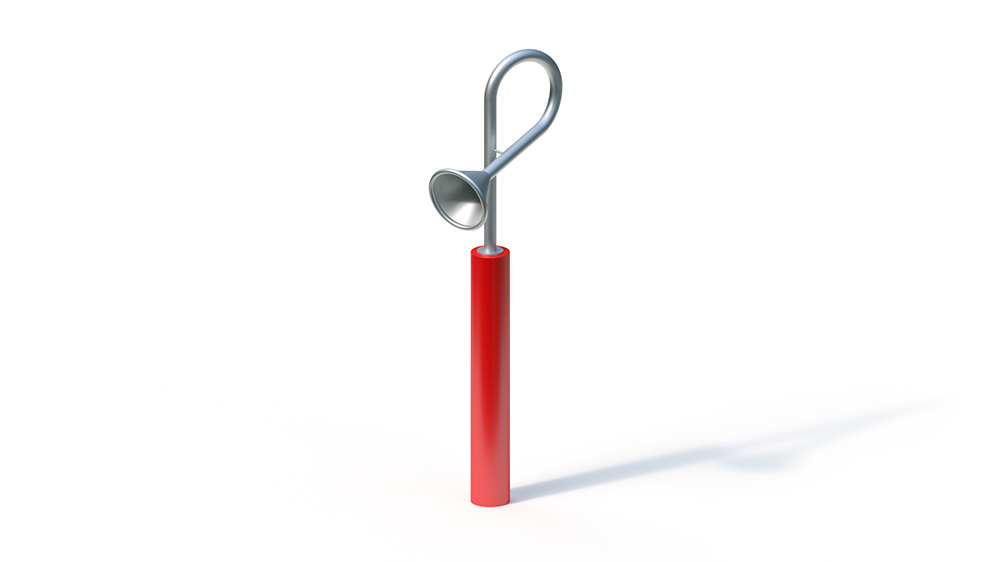

Telephone pillar
Key Attributes
Age Group
1+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
All Ages,
Public Playgrounds etc.
Social Activities.
Techincal Specifications
Lifting Device
-
Total Length
0.40 m
Total Width
0.70 m
Total Height
1.60 m
Minimum Space Length
3.70 m
Minimum Space Width
3.35 m
Minimum Space Height
1.60 m
Heaviest Single Piece
35.00 kg
(Total) Weight
40.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.50 x 0.50 x 0.60 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter every 0.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 0.40 x 0.70 m
Minimum space: 3.35 x 3.70 m (11 m²)
Total height: 1.60 m
Height of bell: 1.10 m (center)
Weight: 35 kg Heaviest individual part
40 kg a total of
Components
– Standpipe: hot-dip galvanized, powder-coated
Stand post color: RAL color of your choice (except for luminous and mica tones)
– Bell and telephone pipe in the standpipe: stainless steel
Connection line
– flexible plastic pipe (PE Ø 50 x 4.5 mm), item no. 0-36200-000 can be supplied at an extra charge
In order to achieve optimal functionality, the distance between the telephone systems should not exceed a maximum of 50.00 m.
Foundation (on site)
1 pc. 0.50 x 0.50 x 0.60 m
Amount of concrete: 0.15 m³ Additional telephones are required for a telephone system (e.g. item no. 0-36120-000 and / or 0-36150-501 / 701)
