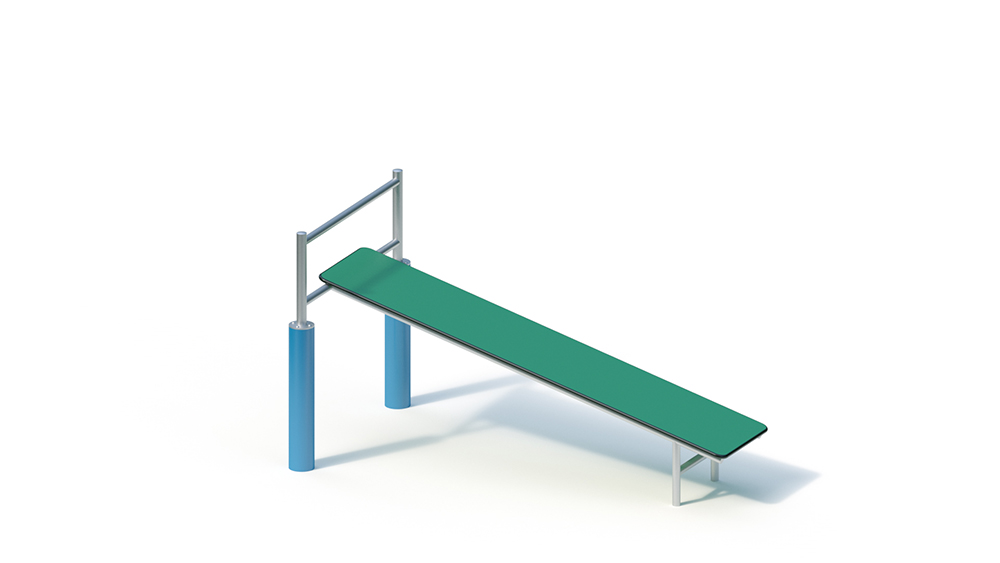

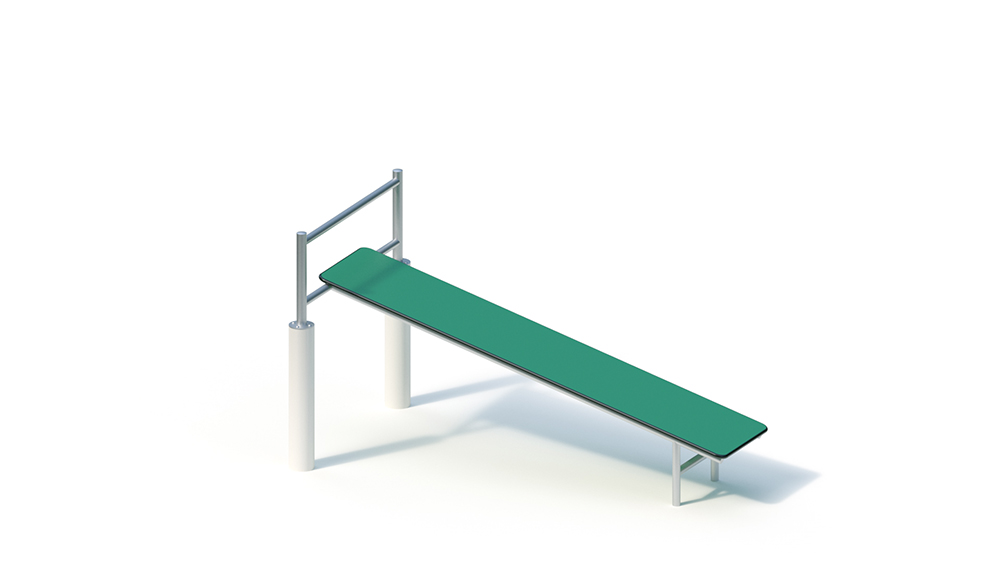

Stretch bench trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
2.15 m
Total Width
1.15 m
Total Height
1.15 m
Minimum Space Length
5.15 m
Minimum Space Width
4.15 m
Minimum Space Height
1.15 m
Heaviest Single Piece
65.00 kg
(Total) Weight
100.00 kg
Free Height of Fall
0.85 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.60 x 0.30 x 0.40 m volume: 0.08 m3
Foundation 2
2 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters each 1.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 1.15 x 2.15 m
Minimum space: 4.15 x 5.15 m (20 m²)
Total height: 1.15 m
Weight: 65 kg heaviest single part
100 kg in total
Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005.
Plate: high pressure laminate 20 mm
Metal
components : Stainless steel station sign (see item no. 0-57404-000) can be supplied at an extra charge .
Foundations (on site)
1 pc. 0.60 x 0.30 x 0.40 m
2 pieces. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.20 m³
Free fall height
0.85 m
