0-44275-000

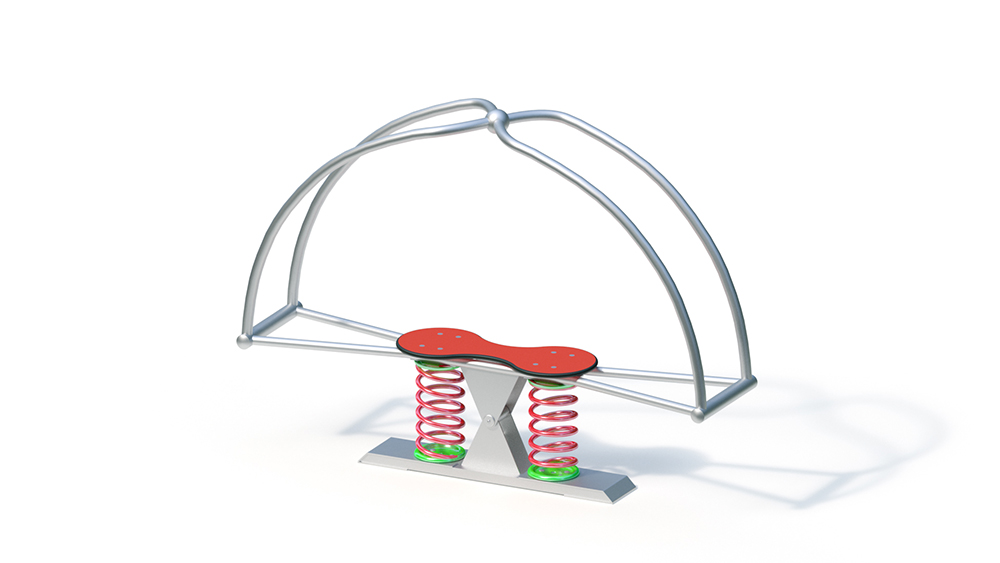

Standing seesaw

Key Attributes

Age Group

4+

Area of Use

Public Playgrounds

Activity

Physical

Suitable for

Suitable for
children from 4 years,
public playgrounds etc.,
exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

2.10 m

Total Width

0.50 m

Total Height

1.55 m

Minimum Space Length

5.10 m

Minimum Space Width

3.50 m

Minimum Space Height

1.55 m

Heaviest Single Piece

-

(Total) Weight

130.00 kg

Free Height of Fall

0.95 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 1.70 x 0.50 x 0.10 m volume: 0.09 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter 1 hour (without foundation creation)

Technical Data

Technical data
Floor area: 0.50 x 2.10 m
Minimum space: 3.50 x 5.10 m (17 m²)
Headroom: approx. 0.50 m
Weight: 130 kg in total

Rocker frame: stainless steel
Rocker spring: special spring wire Ø 20 mm
HPL laminate board , 20 mm; theft-proof screw connection
standpipe with non-slip knurling.
Support bearing: plain bearing

Foundation (on site)
1 pc. 1.70 x 0.50 x 0.10 m
amount of concrete: 0.09 m³

Free fall height
0.95 m
