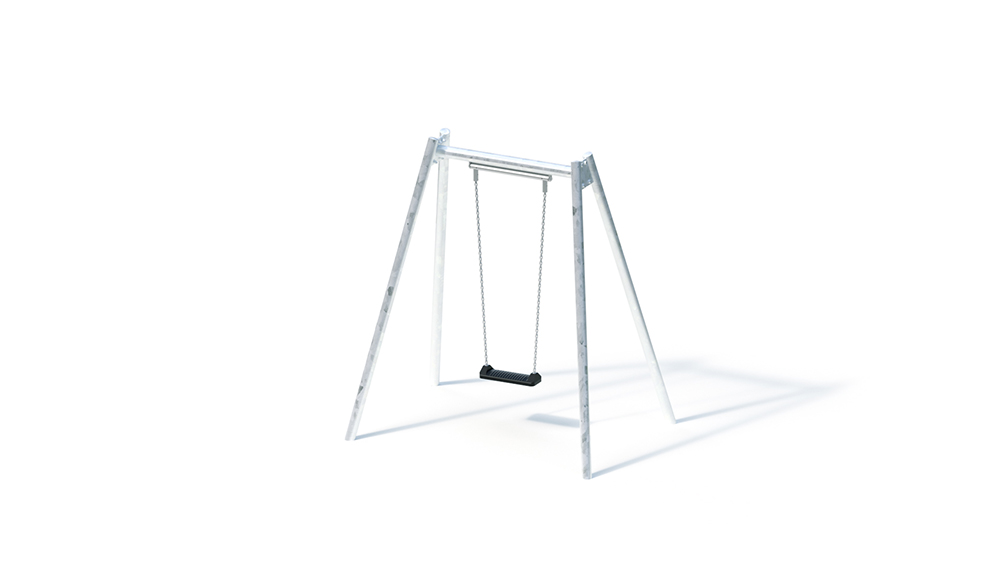

Standard swing (2.00) steel – hot-dip galvanized

3+

public playgrounds

Swings

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

-

2.05 m

1.50 m

2.21 m

7.30 m

2.05 m

2.21 m

20.00 kg

120.00 kg

1.25 m

-

4 pieces - 0.60 x 0.60 x 0.47 m volume: 0.17 m3

-

-

-

-

-

2 pers.

2 h

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical data
Floor area: 1.50 x 2.05 m
Minimum space: 2.05 x 7.30 m (13 m²)
Swing height: 2.00 m
Weight: 20 kg heaviest individual part
100 kg in total

– Steel rocking supports, Ø 76 mm, wall thickness 2.9 mm, hot-dip galvanized; Connection to swing
carrier via connection plates – swing carrier made of steel, Ø 88.9 mm, wall
thickness 3.2 mm, hot-dip galvanized; Connection to rocking
supports via connection plates – swing axis made of stainless steel, consisting of an internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to a To prevent the chains
from knotting – safety
swing seat made of rubber with dimensionally stable aluminum insert and seamless single-point suspension – on the swing axis and on the swing seat: chain attachment with clamp adapter made of stainless steel

Foundations (on site)
4 pcs. 0.60 x 0.60 x 0.47 m
amount of concrete: 07.7 m³

Free fall height
1.25 m
