Squat turning trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
3.05 m
Total Width
0.15 m
Total Height
1.25 m
Minimum Space Length
6.05 m
Minimum Space Width
3.15 m
Minimum Space Height
1.25 m
Heaviest Single Piece
25.00 kg
(Total) Weight
45.00 kg
Free Height of Fall
1.25 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
1 piece - 0.80 x 0.50 x 0.40 m volume: 0.16 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 0.15 x 3.05 m
Minimum space: 3.15 x 6.05 m (17 m²)
Total height: 1.25 m
Weight: 25 kg heaviest individual part
45 kg in total

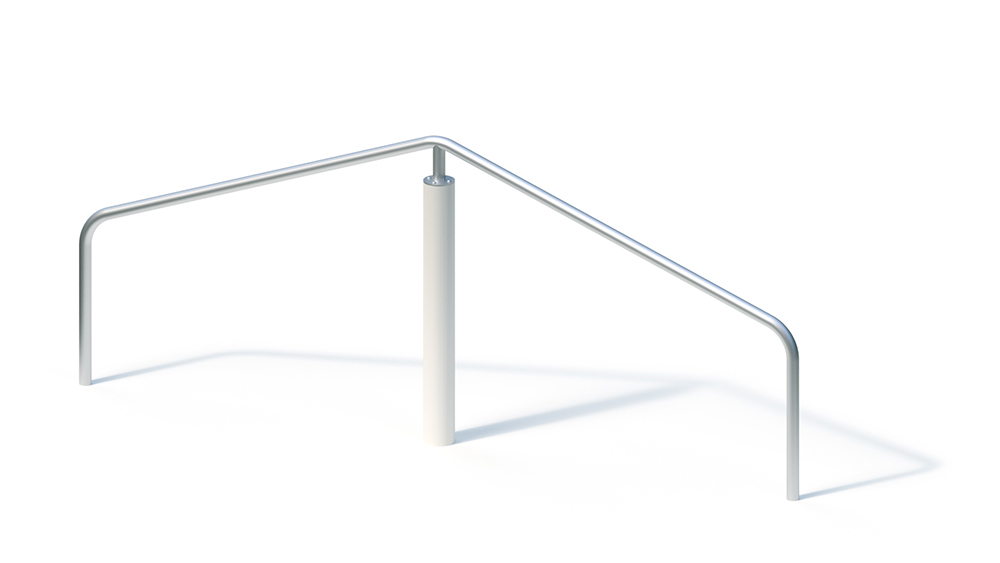

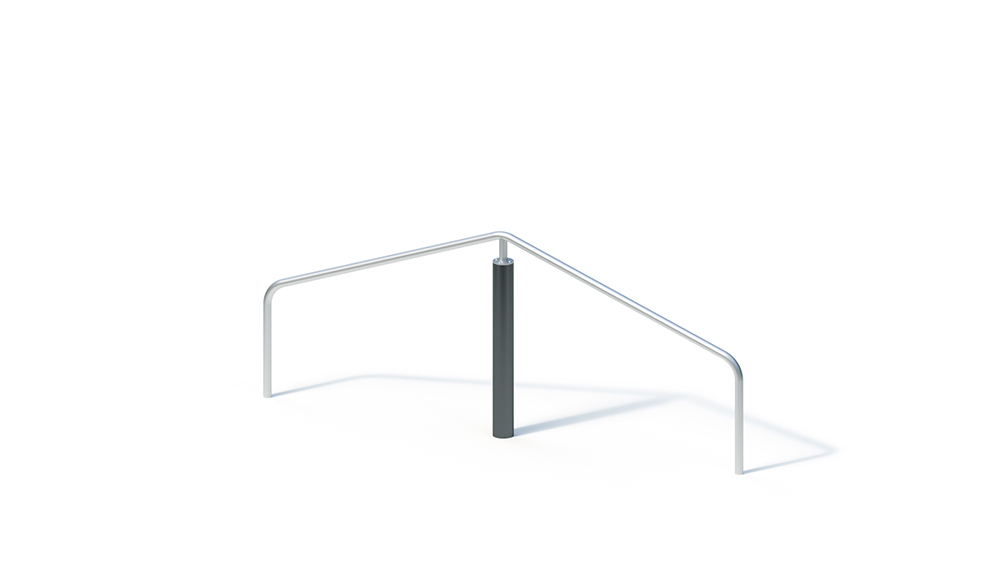

Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Metal components
: Stainless steel
station sign (see item no. 0-57417-000) can be supplied at an extra charge.
Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.50 x 0.80 x 0.40 m
amount of concrete: 0.29 m³
Free fall height
1.25 m
