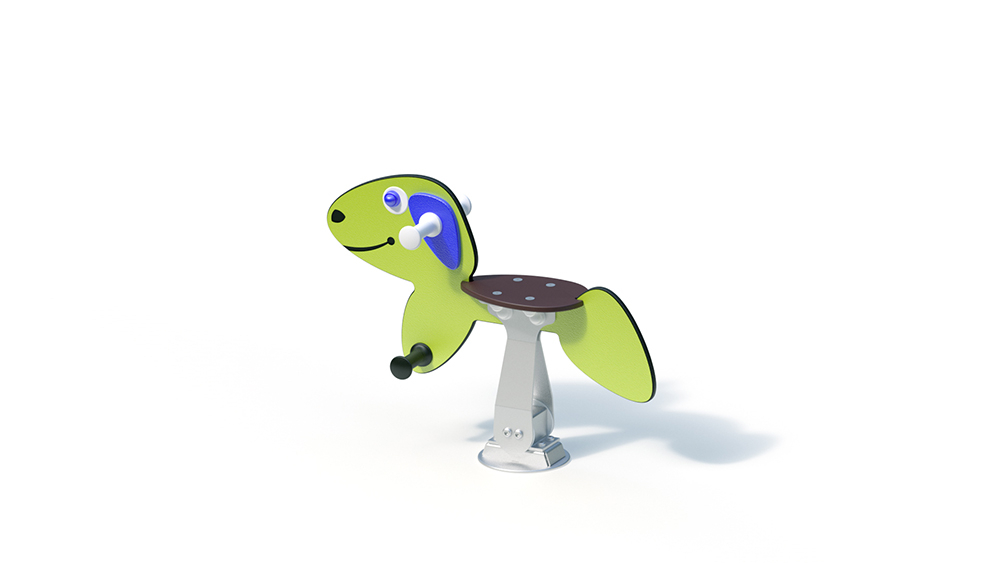

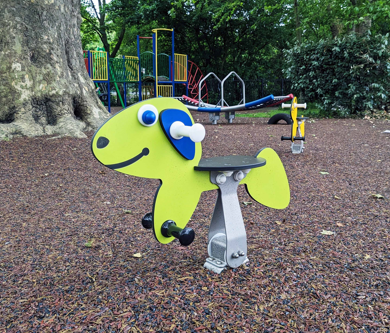

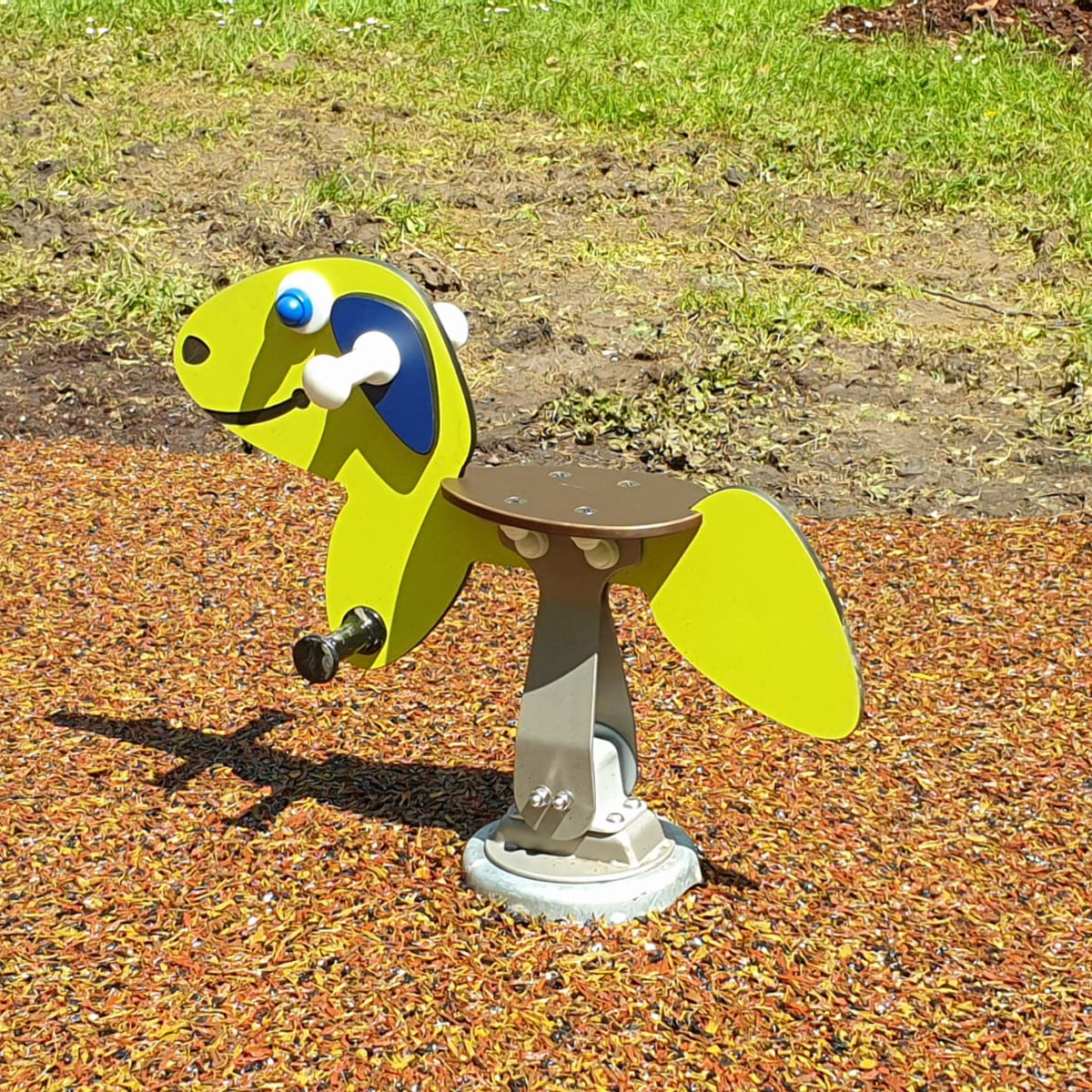

Seesaw dog
Key Attributes
Age Group
1 - 6+
Area of Use
Supervised Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 1 to 6 years,
supervised playgrounds
Exercise activities
Techincal Specifications
Lifting Device
-
Total Length
0.75 m
Total Width
0.25 m
Total Height
0.57 m
Minimum Space Length
2.95 m
Minimum Space Width
2.25 m
Minimum Space Height
0.57 m
Heaviest Single Piece
-
(Total) Weight
22.00 kg
Free Height of Fall
0.40 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.50 x 0.10 m volume: 0.04 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece
Technical Data
Technical data
Total height: 0.57 m
Base area: 0.25 x 0.75 m
Minimum space: 2.25 x 2.95 m (6 m²)
Seat height: 0.37 m
Weight: 22 kg in total
Rocker frame: stainless steel with Rosta rubber spring element
body made of highly weather-resistant HPL laminate board (green / royal blue), 13 mm
seat plate made of highly weather-resistant HPL laminate board (brown), 13 mm, theft-proof screw connection
handles / footrests: polyamide (white / black) Ø51mm, with Cover caps
Including ground anchor
Foundations (provided by customer)
If the soil is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Amount of concrete: 0.04 m³
Free fall
0.40 m
Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
