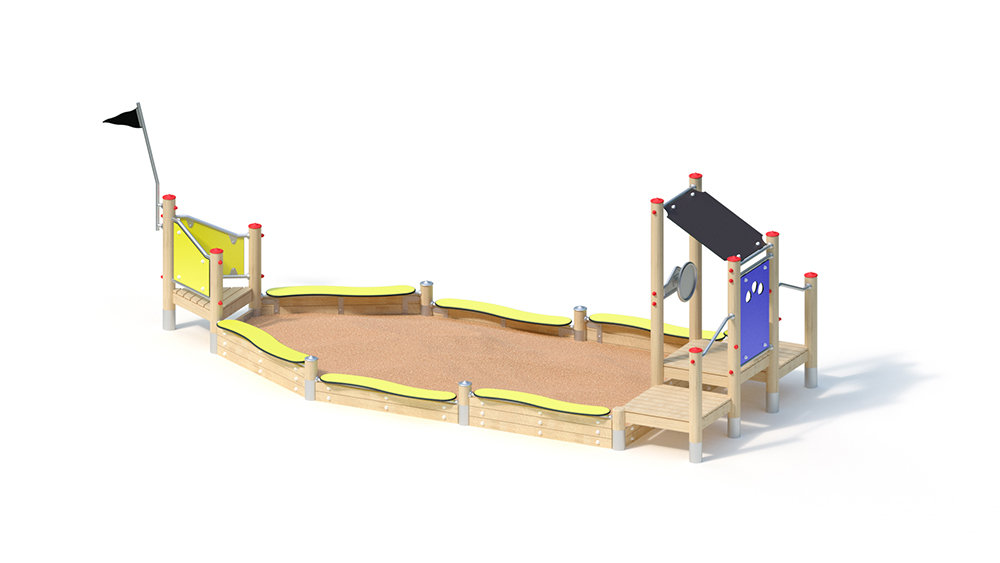

Sand playground
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social activity
Suitable for
Suitable for ages 2+,
public playgrounds, etc.
social / manual activities.
Techincal Specifications
Lifting Device
-
Total Length
6.85 m
Total Width
2.75 m
Total Height
2.25 m
Minimum Space Length
9.50 m
Minimum Space Width
5.75 m
Minimum Space Height
2.25 m
Heaviest Single Piece
25.00 kg
(Total) Weight
560.00 kg
Free Height of Fall
0.60 m
Platform Heights
0.40 m, 0.60 m
Foundations
Foundation 1
15 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
5 h
Assembly Details
Assembly time 2 fitters each 5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 2.75 x 6.85 m
Minimum space 5.75 x 9.50 m (46 m²)
Total height: 2.25 m
Platform height: 0.40 / 0.60 m
Weight: 25 kg Heaviest individual part
560 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts – Robinia sand edging 95 x 30 mm, planed, chamfered and free of rotten branches
– Panel parapet made of colored, highly weather-resistant HPL laminate board . Fastening between stainless steel tubes Ø 33.7 x 2 mm
– Step railing made from stainless steel tube, Ø 33.7 x 2 mm, for stepped platform floors
– Pent roof, inclination 30 °, made of highly weather-resistant HPL laminate board , 13 mm. Attachment to the roof frame made of stainless steel Ø 33.7 x 2 mm
– Steering wheel: rotatable with snap-in
– Front flag made of rubber with fabric insert
– Seat: made of colored, highly weather-resistant HPL laminate (yellow), 20 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
15 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.96 m³
Free fall height
0.60 m
