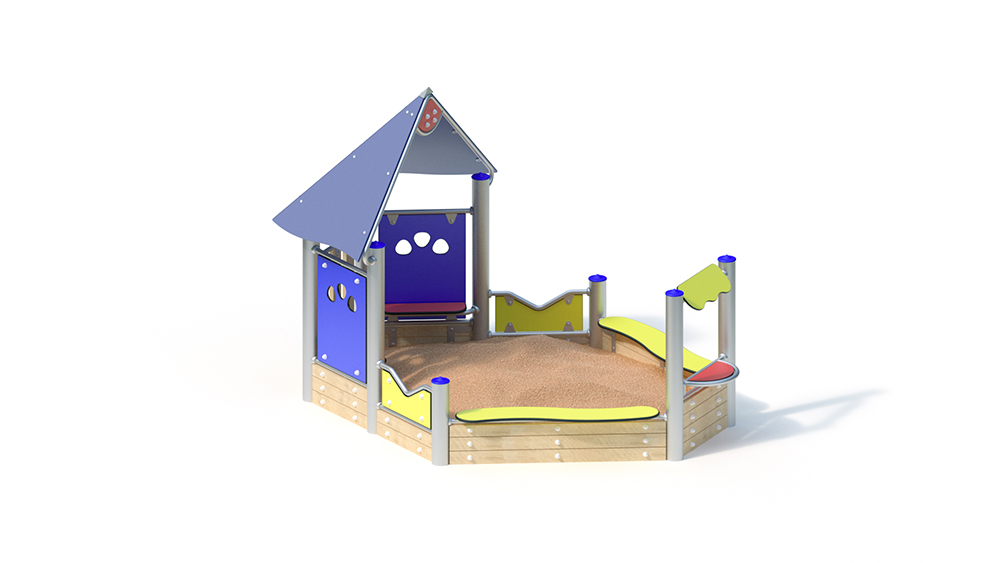

Sand playground

1+

Public Playgrounds

Social activity

Suitable for All Ages,
Public Playgrounds, etc.
Social / Manual Activities

-

3.30 m

2.55 m

2.25 m

6.30 m

5.55 m

2.25 m

30.00 kg

290.00 kg

0.55 m

-

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Floor area: 2.55 x 3.30 m
Minimum space: 5.55 x 6.30 m (27 m²)
Height: 2.25 m
Weight: 30 kg Heaviest single part
290 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Attachment parts
– panel
parapet made of colored, highly weather-resistant HPL laminate board – wooden parapet made of robinia, 120 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm. Fastening to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat / counter: made of colored, highly weather-resistant HPL laminate board, 20 mm
– Table / awning: made of colored, highly weather-resistant HPL laminate
board , 15 mm – Sand border made of robinia 95 x 30 mm, planed, chamfered and free of lazy branches
– play and seat plate made of colored, highly weather-resistant HPL laminate board , 20 mm

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³

Free fall height
0.55 m
