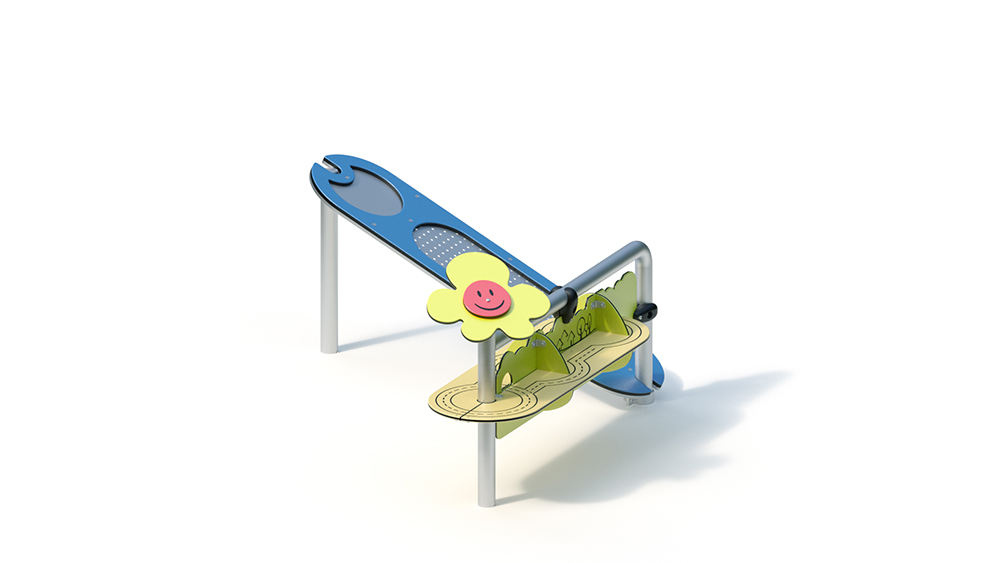

Sand combo
Key Attributes
Age Group
1-6+
Area of Use
supervised playgrounds
Activity
Social activity
Suitable for
Suitable for
children aged 1 – 6,
supervised playgrounds, etc.
Exercise / social activities
Techincal Specifications
Lifting Device
-
Total Length
1.60 m
Total Width
1.45 m
Total Height
0.85 m
Minimum Space Length
4.60 m
Minimum Space Width
4.45 m
Minimum Space Height
0.85 m
Heaviest Single Piece
15.00 kg
(Total) Weight
60.00 kg
Free Height of Fall
0.38 m
Platform Heights
-
Foundations
Foundation 1
3 pieces - 0.30 x 0.30 x 0.30 m volume: 0.03 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Total height: 0.85 m
Base area: 1.45 x 1.60 m
Minimum space: 4.45 x 4.60 m (17 m²)
Weight: 16 kg heaviest individual part
60 kg in total
Attaching parts
– tube bracket and support tube made of stainless steel tube, 60.3 x 3 mm
– flower from highly weather-resistant HPL plate (yellow / red), 15 mm
– sand screen and highway highly weather-resistant HPL plate (blue / lime green / yellow) 13 and 15 mm and stainless steel perforated sheet. Fastening with stainless steel clamps and aluminum clamps to the pipe structure.
Metal components: stainless steel, aluminum
Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.30 m
Amount of concrete: 0.08 m³
Free fall height
0.38 m
