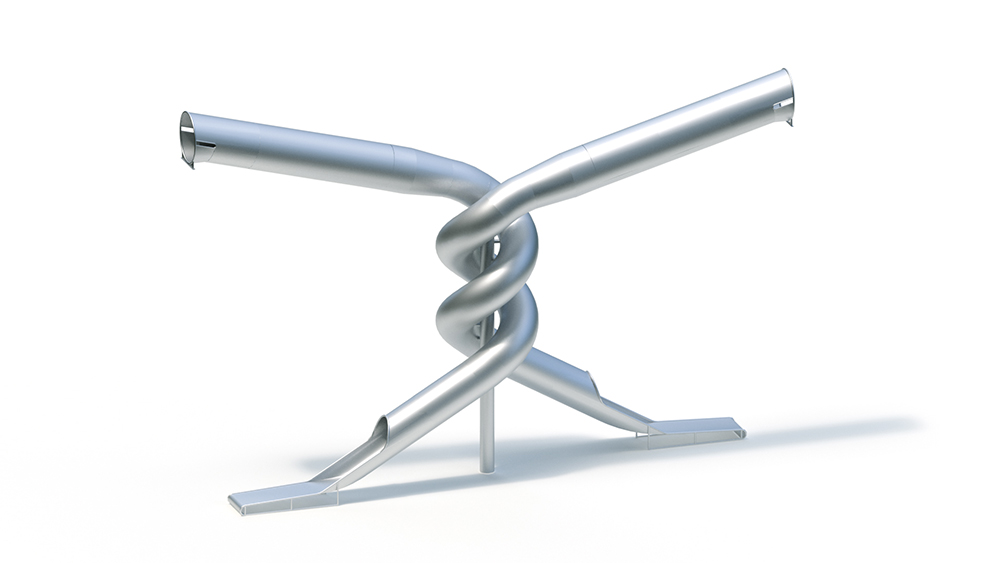

Roller conveyor tunnel slide combination
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
–
Techincal Specifications
Lifting Device
Y
Total Length
12.50 m
Total Width
2.30 m
Total Height
8.25 m
Minimum Space Length
15.40 m
Minimum Space Width
5.30 m
Minimum Space Height
-
Heaviest Single Piece
1900.00 kg
(Total) Weight
3335.00 kg
Free Height of Fall
0.71 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.80 x 1.00 m volume: 0.64 m3
Foundation 2
6 pieces - 1.00 x 0.40 x 0.40 m volume: 0.16 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
3 pers.
Assembly Time
8 h
Assembly Details
-
Technical Data
Technical data
Flange
mounting
Attachment height: 7.11 m seat height: 7.28 m
Roller conveyor inclination: 15 °
Roller conveyor diameter: 0.96 m Slide inclination:
30 ° / 38 °
Tunnel diameter: 0.80 m
Sheet thickness: 2.5 mm
Roller conveyor segments made of stainless steel
seat part with handle openings on both sides, internal track guide, roller-bearing stainless steel rollers, roller diameter: 50 mm
central pylon: stainless steel
tube Ø 298.5 x 7.1 mm slide segments made of stainless steel, particularly low-noise due to the tubular shape,
five-part roller conveyor / slide, including connecting flanges for on-site assembly.
Consisting of:
– 17100 K&K roller conveyor single seat
– 17110 K&K roller conveyor straight
– 16155 K&K tunnel slide screw 38 °, clockwise
– 16148 K&K tunnel
slide shaft 38/30 ° – 16110 K&K tunnel
slide straight 30 ° – 16180 K&K tunnel slide outlet 30 °
Foundations (on site)
1 pc. 0.80 x 0.80 x 1.00 m
6 pcs. 1.00 x 0.40 x 0.40 m
amount of concrete: 1.60 m³
