9-41000-804

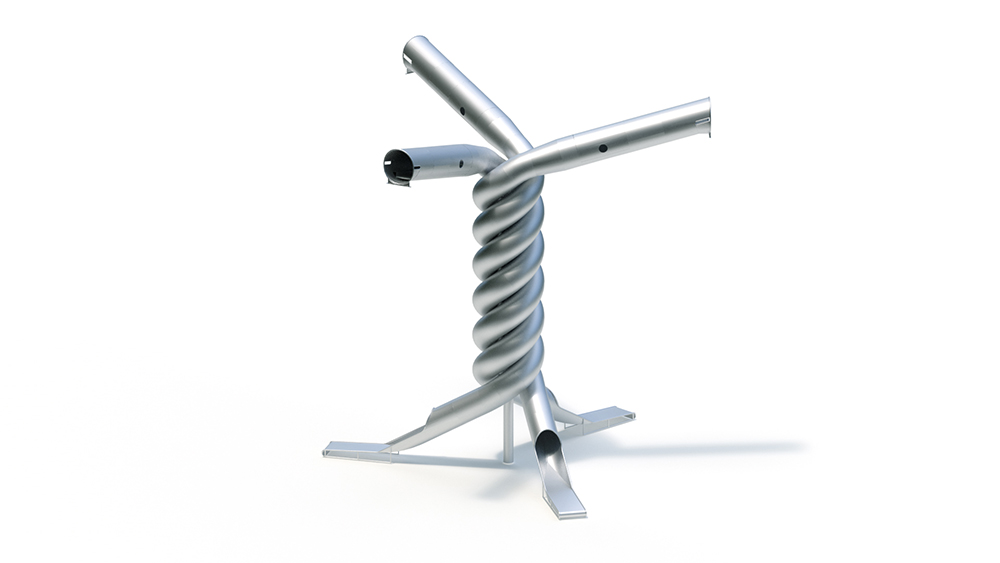

Roller conveyor tunnel slide combination

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Slide

Techincal Specifications

Lifting Device

Y

Total Length

11.30 m

Total Width

10.90 m

Total Height

11.40 m

Minimum Space Length

13.20 m

Minimum Space Width

13.10 m

Minimum Space Height

-

Heaviest Single Piece

3780.00 kg

(Total) Weight

6230.00 kg

Free Height of Fall

0.71 m

Platform Heights

-

Foundations

Foundation 1

9 pieces - 1.00 x 0.40 x 0.40 m volume: 0.16 m3

Foundation 2

1 piece - 0.80 x 0.80 x 1.00 m volume: 0.64 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

4 pers.

Assembly Time

10 h

Technical Data

Technical data
Flange
mounting
Mounting height: 10.25 m seat height: 10.42 m
Roller conveyor inclination: 15 °
Roller conveyor diameter: 0.96 m Slide inclination:
30 ° / 38 °
Tunnel diameter: 0.80 m
Sheet thickness: 2.5 mm
Roller conveyor segments made of stainless steel
single seat part with handle openings on both sides,
internal track guide, roller-bearing
stainless steel rollers , light openings made of unbreakable
polycarbonate
roller diameter: 50 mm
central pylon:
steel tube Ø 298.5 x 7.1 mm, hot-dip galvanized /
sheet metal stainless steel tube Ø 313 x 2.5 mm
slide segments made of stainless steel,
particularly low-noise due to the tubular shape ,
Seven-part roller conveyor / slide, including
connecting flanges for on-site assembly.

Consisting of:

– 17100 K&K roller conveyor single seat
– 17120 K&K roller conveyor straight
– 17110 K&K roller conveyor straight, 3 pcs.
– 17150 K&K roller conveyor adapter
– 16155 K&K tunnel slide screw 38 °, clockwise
– 16148 K&K tunnel
slide shaft 38/30 ° – 16110 K&K tunnel
slide straight 30 ° – 16180 K&K tunnel slide outlet 30 °

Amount of concrete: 2.27 m³
