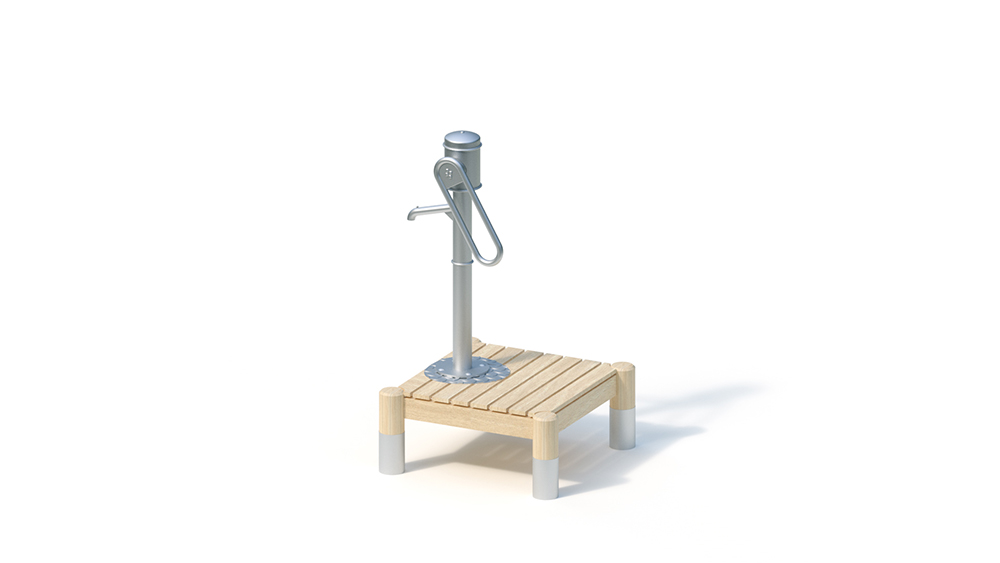

Pump platform

-+

Public Playgrounds

-

–

-

1.00 m

0.95 m

1.60 m

4.00 m

3.95 m

1.60 m

45.00 kg

110.00 kg

0.40 m

0.40 m

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

1 h

Assembly time 2 fitters each 0.5 hours (without foundation creation, without water connection)

Technical data
Floor area: 0.95 x 1.00 m
Minimum space: 3.95 x 4.00 m (14 m²)
Total height: 1.60
m
Outlet height Pump handle: 1.08 m Platform height: 0.40 m
Weight: 45 kg heaviest Single part
110 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm, front side bevelled.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

K&K water pump Article No. 0-33130-001 Suction
pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with handle must be removed e.g. during the frosty season, sealing cover (” Wintering plate “) for the remaining lower part of the pump is included.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Please note:
When connecting the water pump to a pressurized water line, the K&K valve combination (Art.No. 0-33190-000) is required.

If the water supply is intended to be temporarily interrupted (timer or similar), a negative pressure builds up in the line system when the pump continues to be operated, which causes the pump handle to kick back.
It is therefore imperative to prevent actuation of the pump handle (for example by using the pump lock item number 1040639).

In doing so, also observe the general data specified in the assembly instructions (distances, diameter of the lines, etc.); You can get these on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³

Free fall
0.40 m
