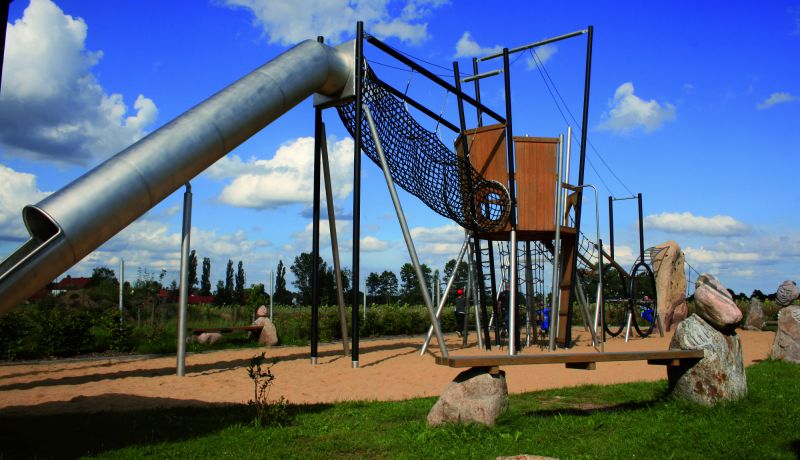

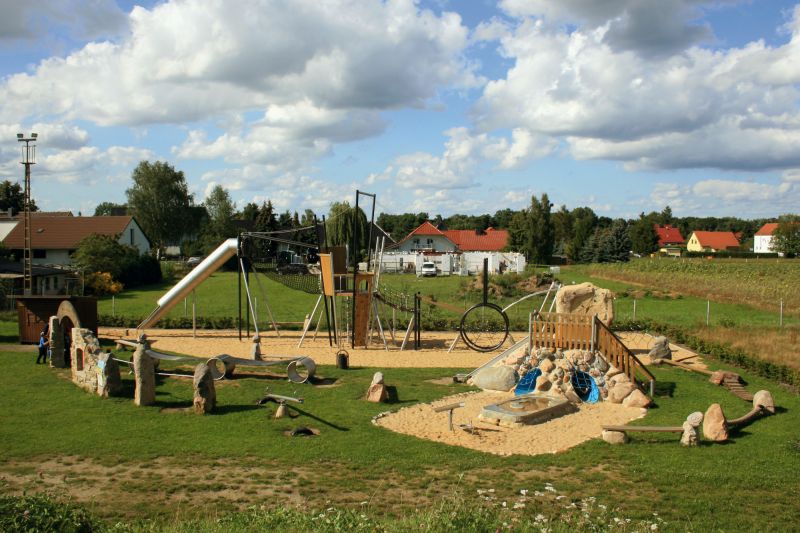

Playground: Opencast Mining
Order Number: 1S-150318-41
Stainless steel posts
Wood: Robinia

– Two stainless steel rings, approximately 200cm in diameter, with a spider net
– One net bridge made of Hercules rope, approximately 200cm in length
– One jungle bridge made of Hercules rope, attached to two additional stainless steel posts, approximately 200cm in length
– One hexagon tower with six inclined stainless steel posts
– One hexagon platform, with a platform height (PH) of 250cm
– One net tunnel made of Hercules rope
– One stainless steel safety barrier
– One climbing wall with a step-through frame and synthetic resin climbing grips
– One climbing net made of Hercules rope
– One climbing pole made of Hercules rope
– One stainless steel climbing pole
– One stainless steel trapezoidal ladder
– One horizontal bar
– Three elevated balustrades, including one with an access opening for the net tunnel
– One net tunnel, approximately 400cm in length, suspended on two stainless steel carriers
– One endstock with two stainless steel posts
– One stainless steel tunnel slide, with a height (PH) of 400cm
– Several pressure support posts
– Three stainless steel tubes, approximately 75cm in diameter, spanned with conveyor belt rubber at a distance of approximately 200cm, with a length of approximately 600cm

Without color design

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm.
The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
All wooden parts are made of Robinia, planed and chamfered. All wooden parts are untreated.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
The nets are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)
